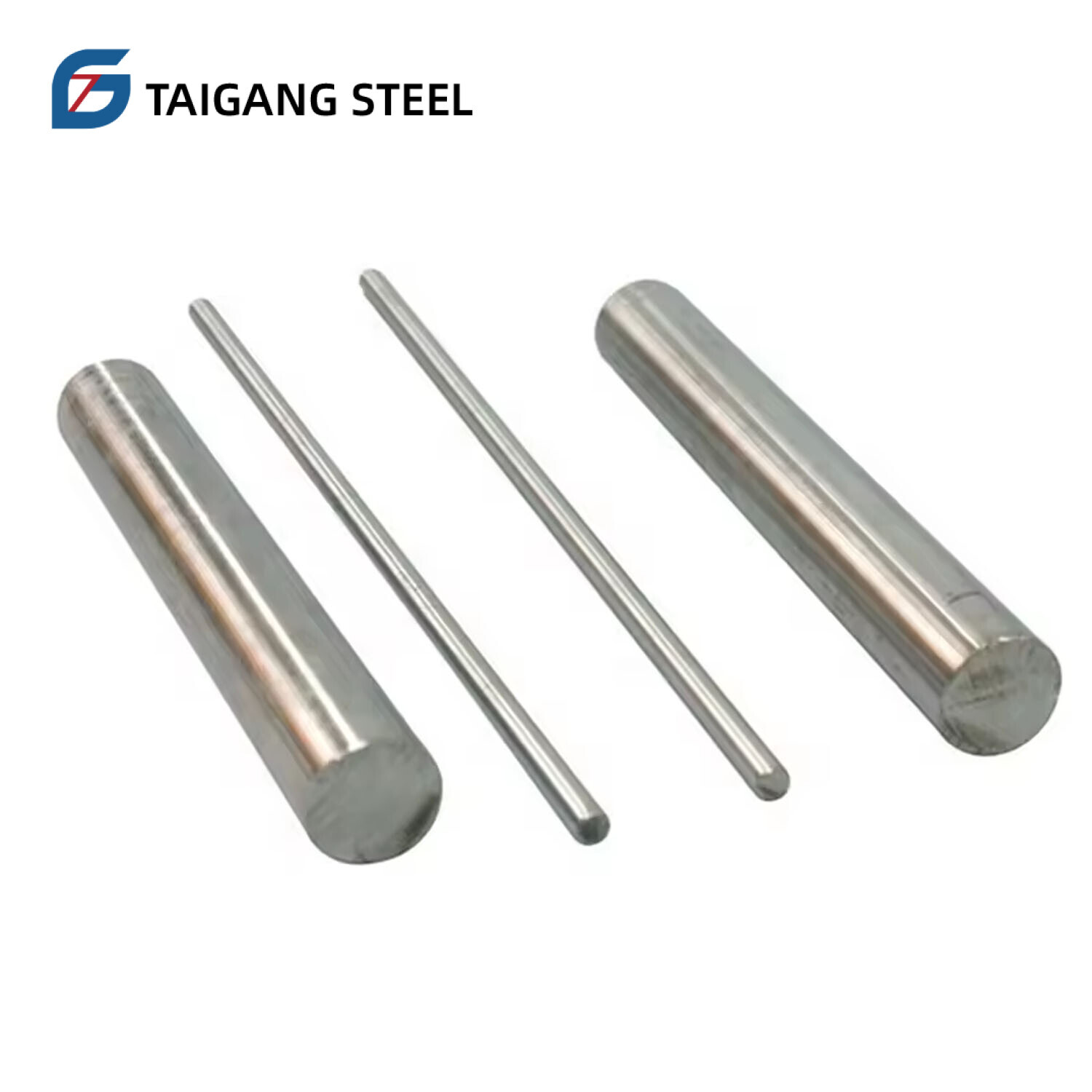

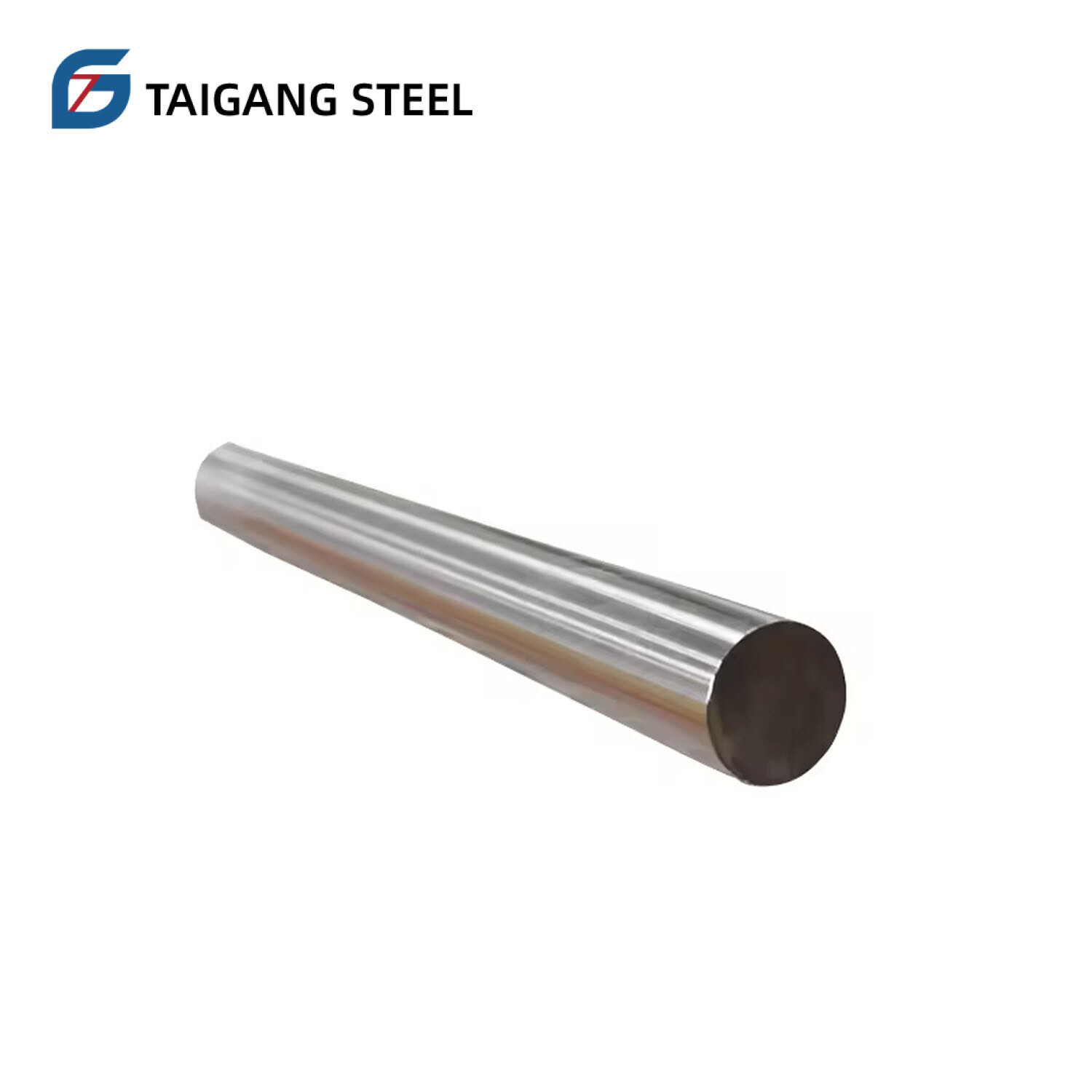

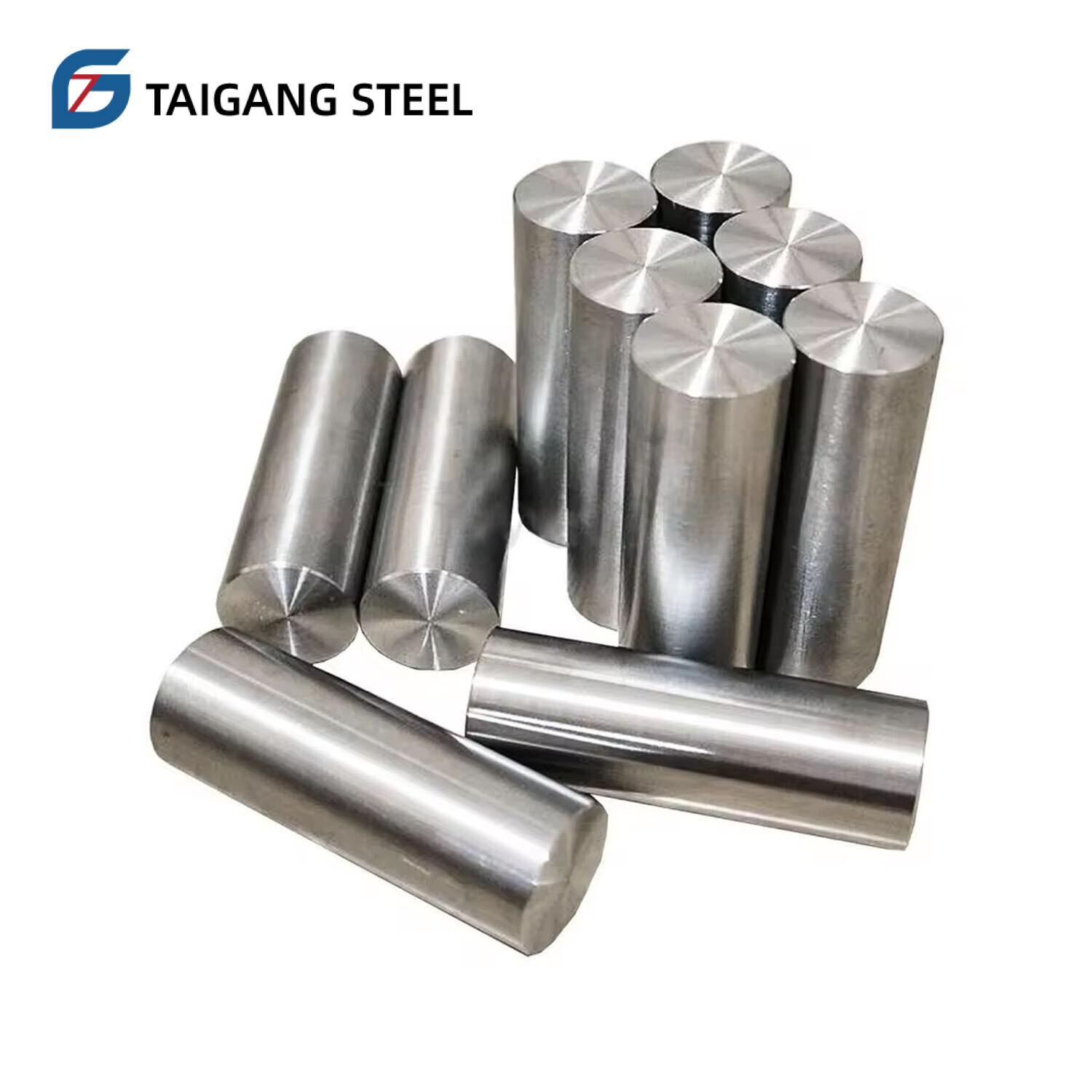

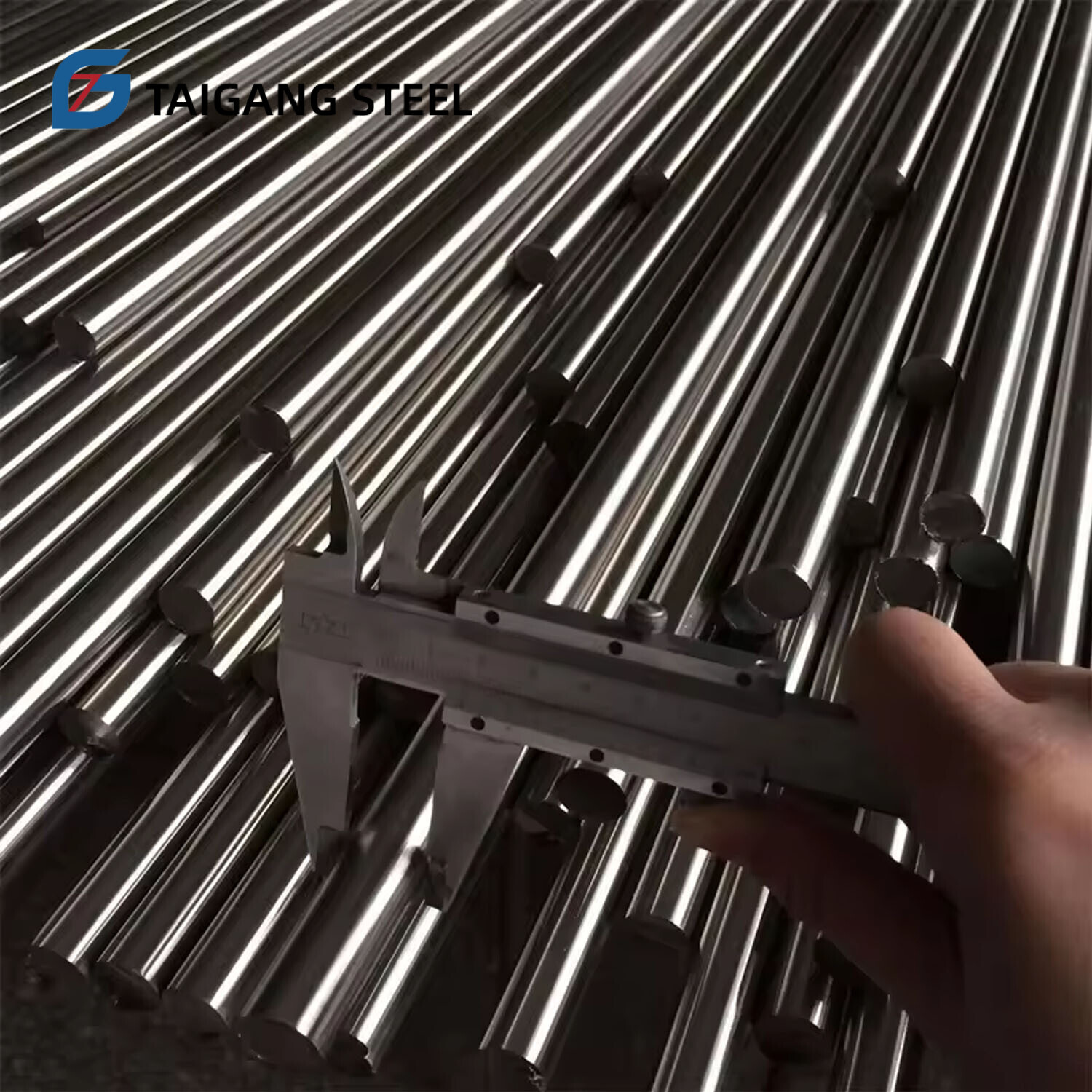

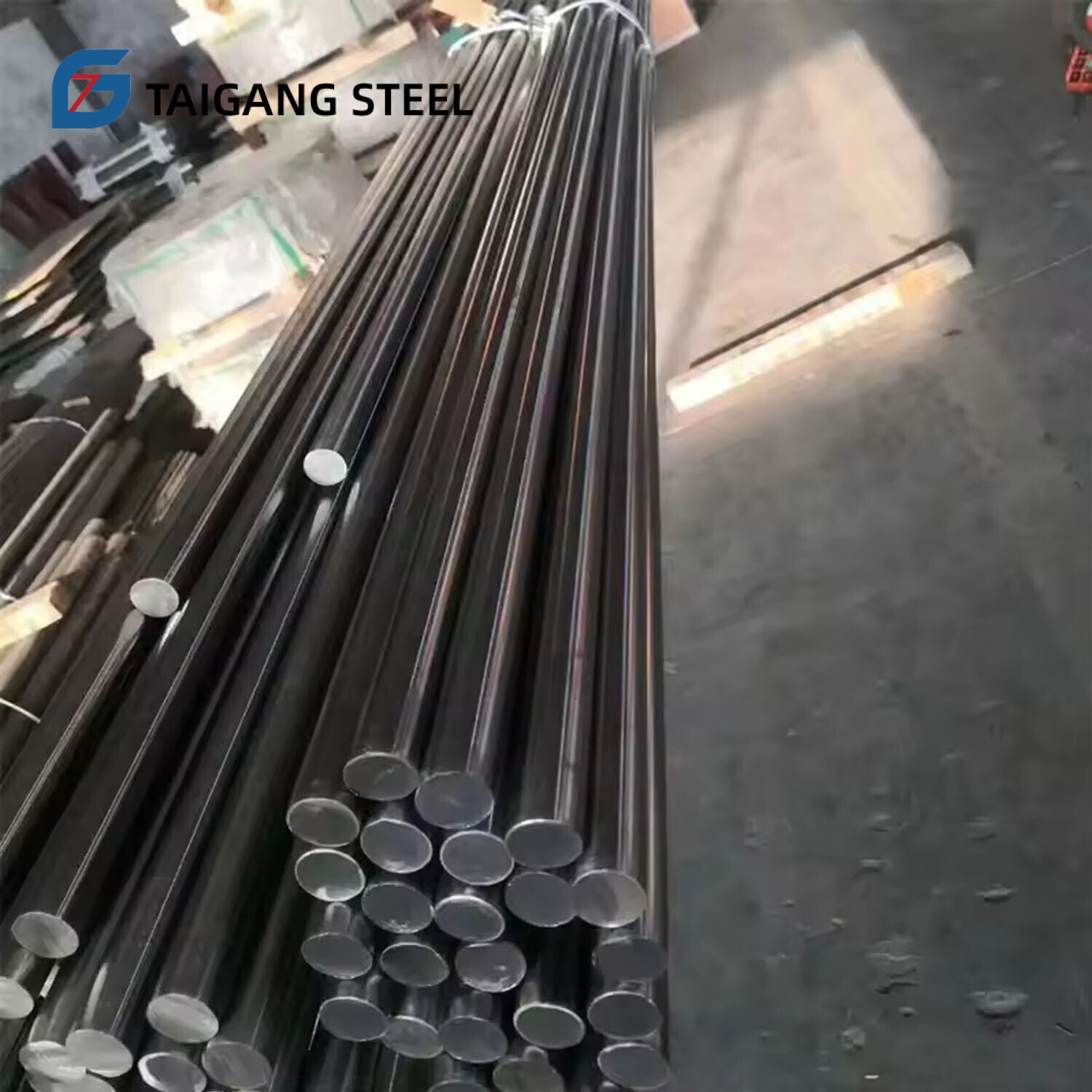

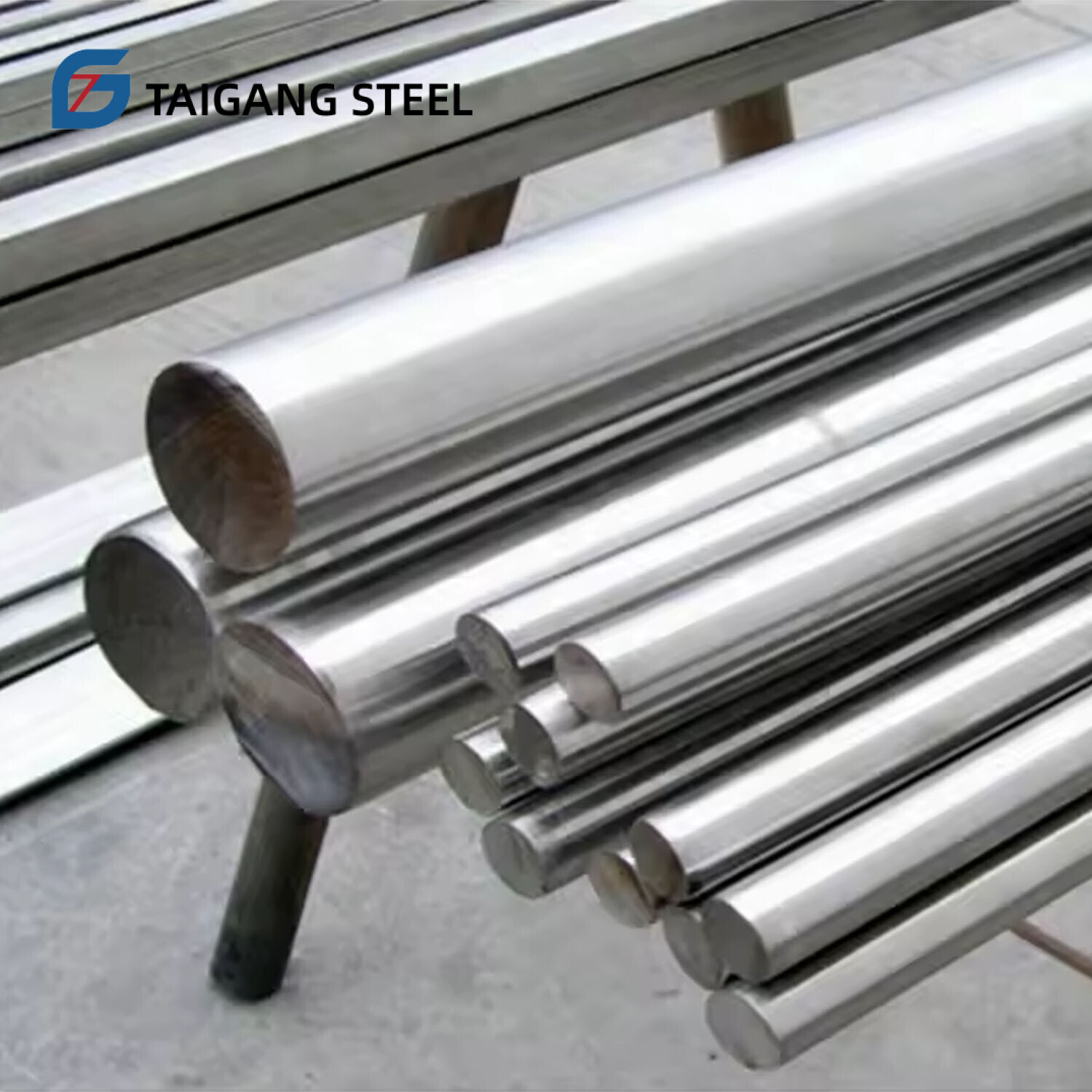

Hastelloy C-276 Bar
Hastelloy C- 276 is a nickel-molybdenum-chromium superalloy with the expansive properties of tungsten and is designed to have excellent corrosion resistance in a variety of severe conditions. The high nickel alloy and molybdenum species make the nickel steel alloy particularly resistant to pitting and crevice corrosion under reduced conditions, while chromium has the ability to resist oxidation media. The low carbon content minimizes the precipitation of carbides during the welding process to maintain the corrosion resistance of the welded structure. These nickel alloys are resistant to the formation of grain limit acceleration in the heat affected zone of welding, making them suitable for most chemical process applications in the welded state.
Quick Quote
Contact Us


Product Description
Factory
Packing & Transportation
Product Parameters
Product NameHastelloy C-276 Bar
Outer DiameterRound Bar4mm-500mm
Hexagon Bar18mm-57mm (11/16″ to 2-3/4″)
Square Bar18mm-47mm (11/16″ to 1-3/4″)
Flat Steel1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length1-6 meters, Length can be customized
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBlack, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
CertificateISO, SGS, BV
Production TechnologyHot Rolling, Cold Rolling



Chemical Composition

CPSiSVCrMnFeCoNiMoW
0.01 max0.08 max0.04 max0.03 max0.35 max14.5 - 16.51.0 max4.0 - 7.02.5 maxRemainder15.0 - 17.03.0 - 4.5



Mechanical Properties

Tensile Strength (ksi)0.2% Yield Strength (ksi)Elongation% in 2 inches
1004140



Physical Performance


UnitsTemperature in°C
Density8.69 g/cm³22°
Specific Heat0.102 Kcal/kg.CRoom
Melting Range1323-1371°C-
Modulus of Elasticity205 KN/mm²Room
Electrical Resistivity129.5 µΩ.cm24°
Coefficient of Expansion11.2 µm/m °C24-93°
Thermal Conductivity10.2 w/m-° K38°



Scope of Application

C- 276 alloys are mostly used as part of the most severe situations, for example, chemical processing, pollution control, pulp and paper production; industrial and municipal waste treatment and acid natural gas recovery.



- Company Honor -

- FQA -

Q:Are you trading company or manufacturer ?
A: We are professional manufacturer, providing a wide range of steel products.

Q:Do you provide samples ?
A:Yes ,we would provide samples For Free .The courier freight will be covered by customer’s account.
Q:Could you customized as our request?
A:Yes, just tell your demands, we can offer the customized solution for you, such as material, hardness, thickness,width and so on.

Q:How can I visit your factory ?
A:Welcome to visit our factory at any time. We will help you accessing the business visa to China . Assist arranging your schedule in China ,including the factory visiting , products quality checking , car picking up, hotel booking , food service etc.
