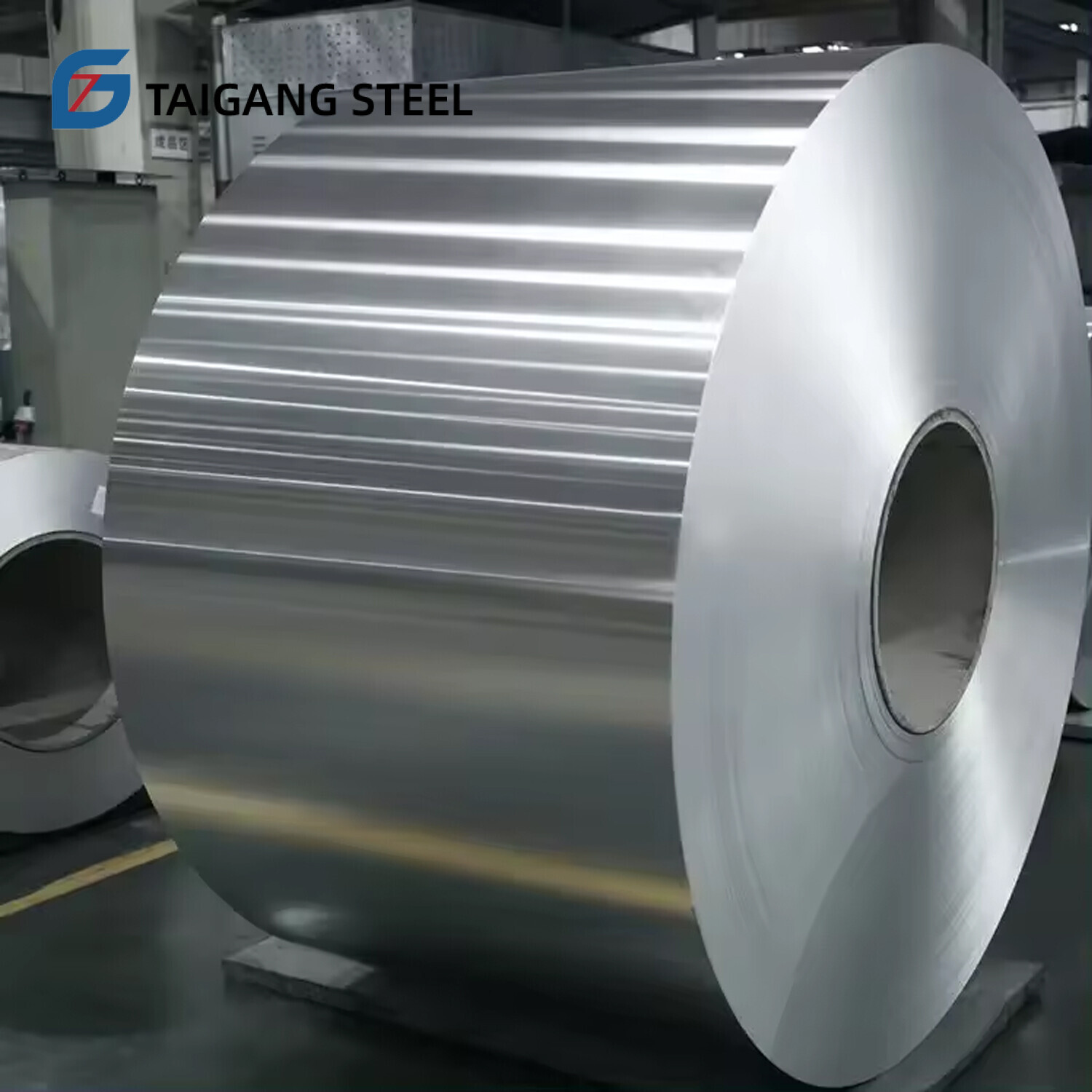

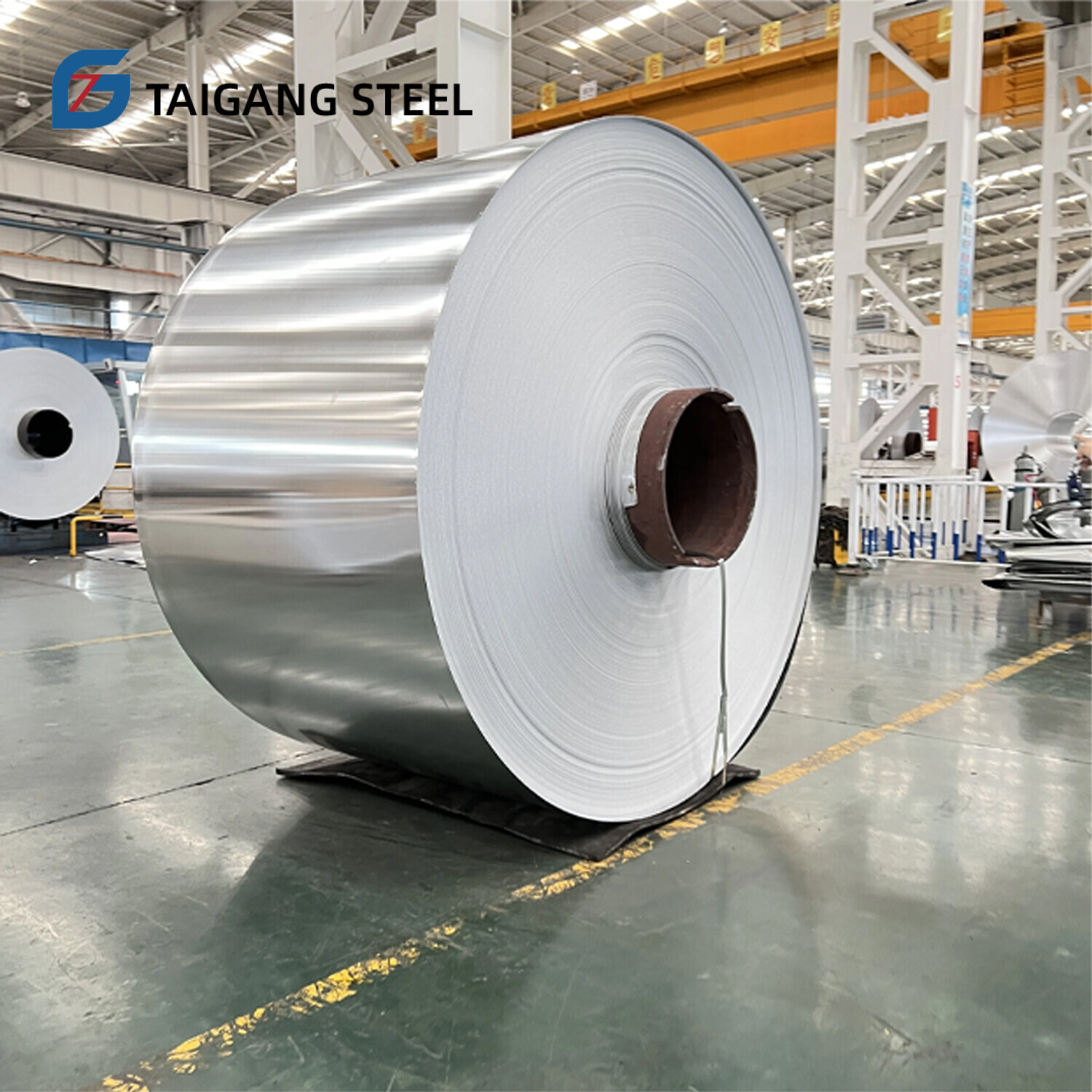

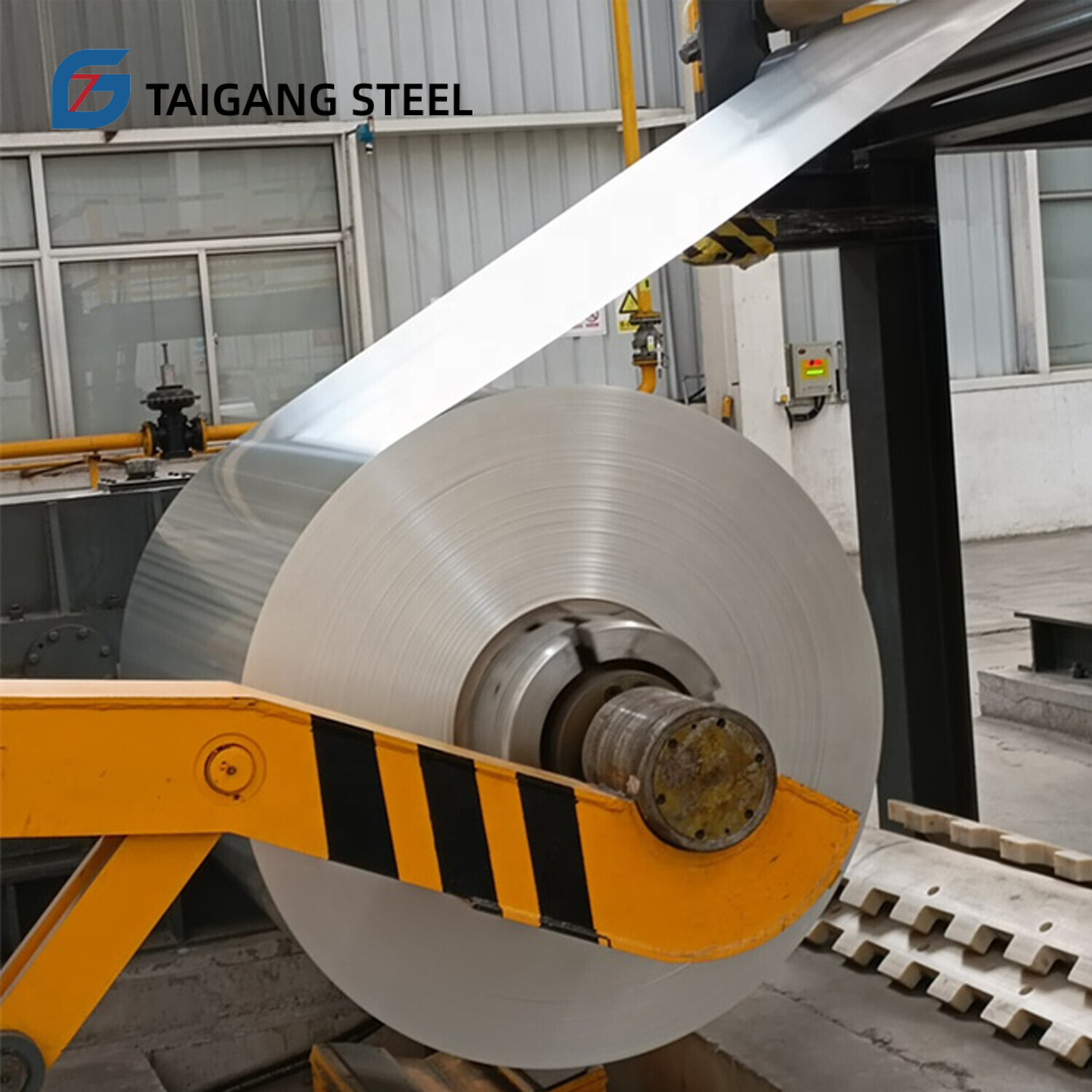

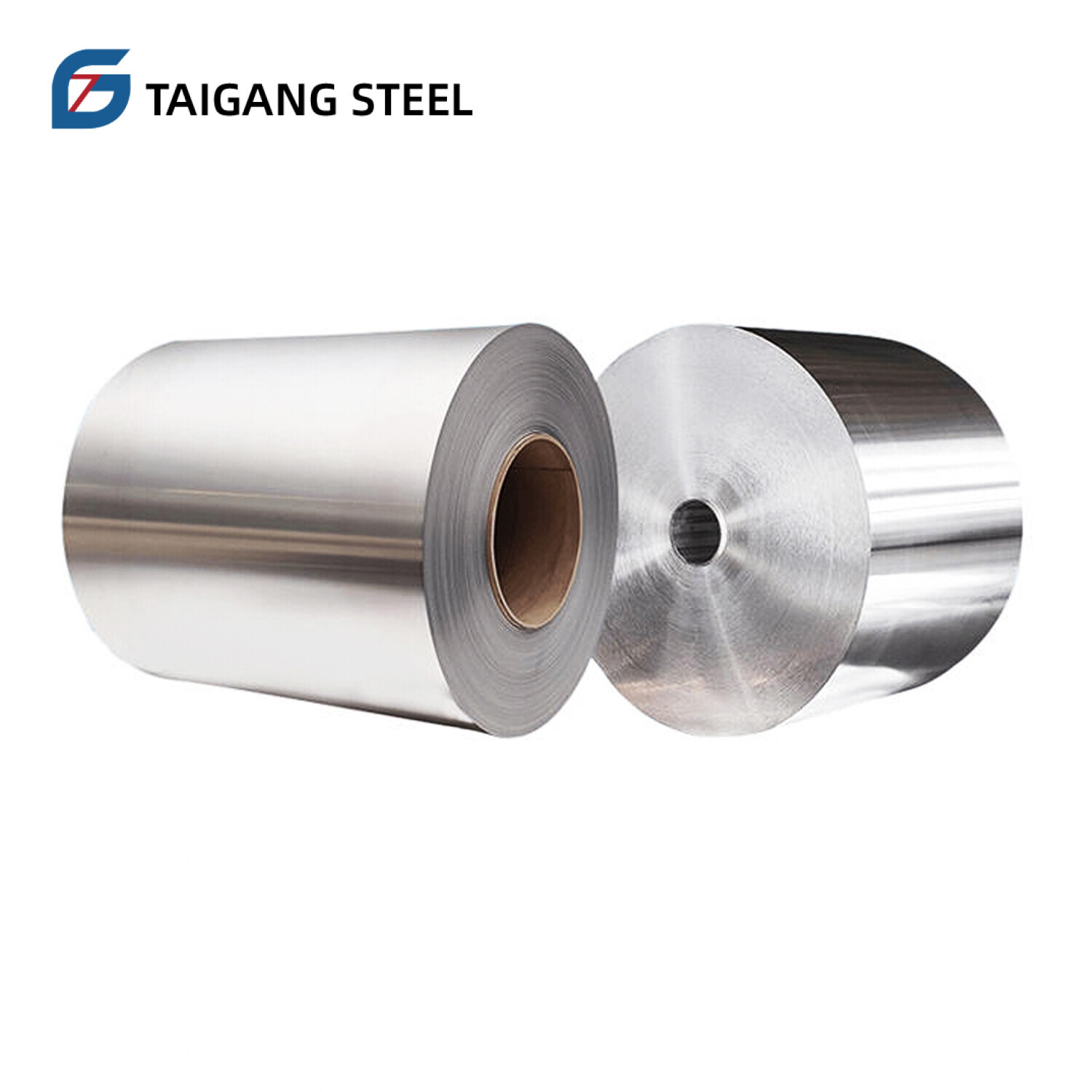

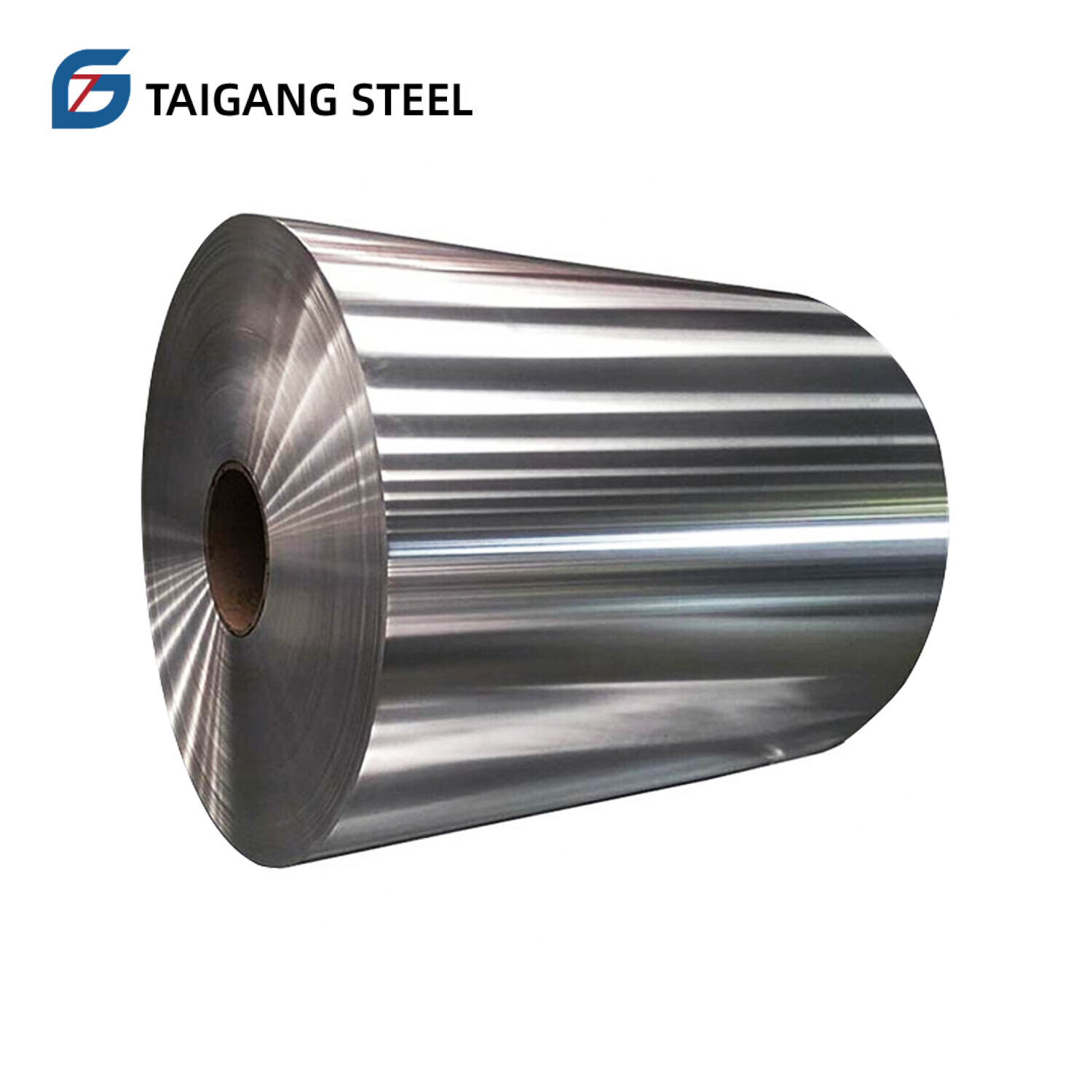

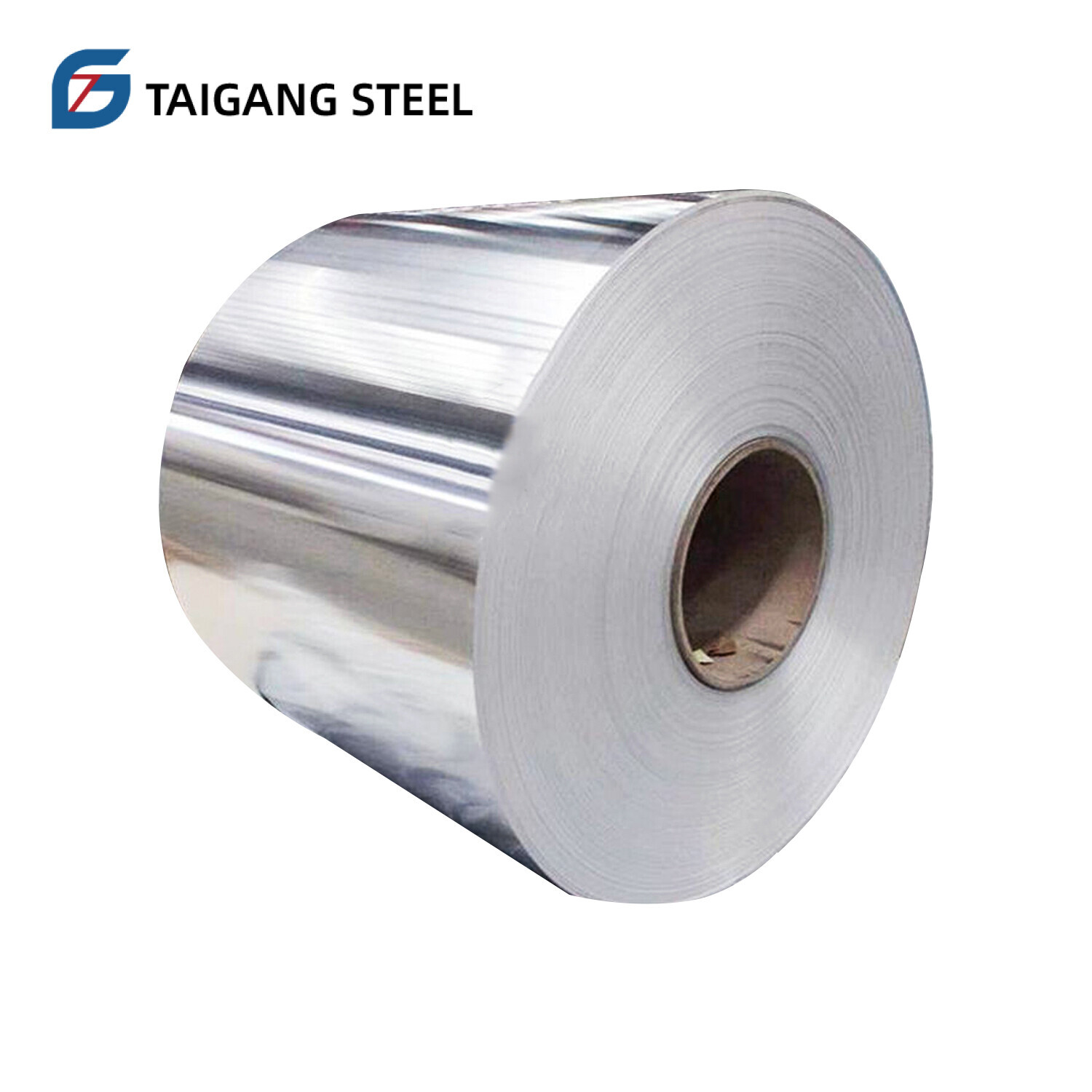

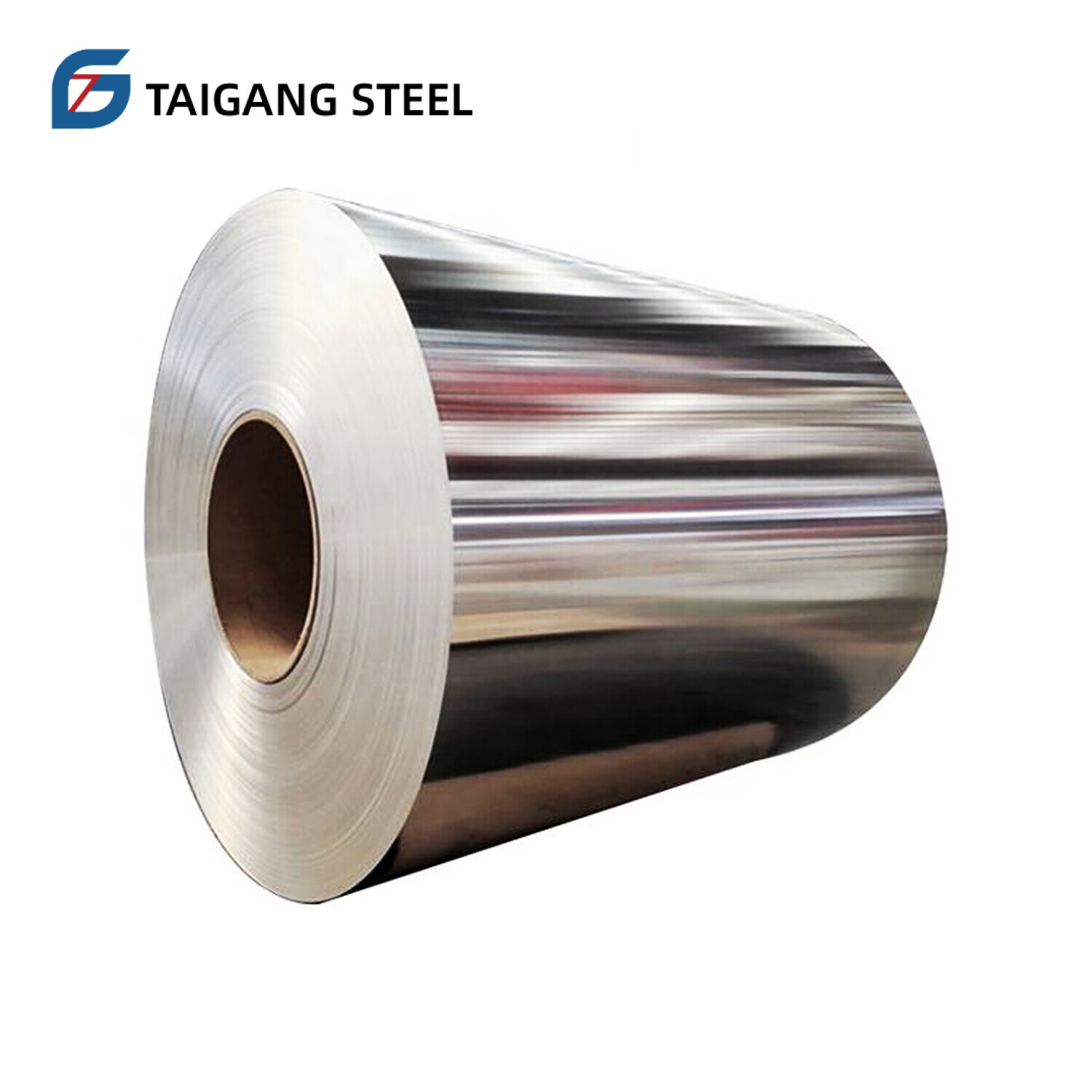

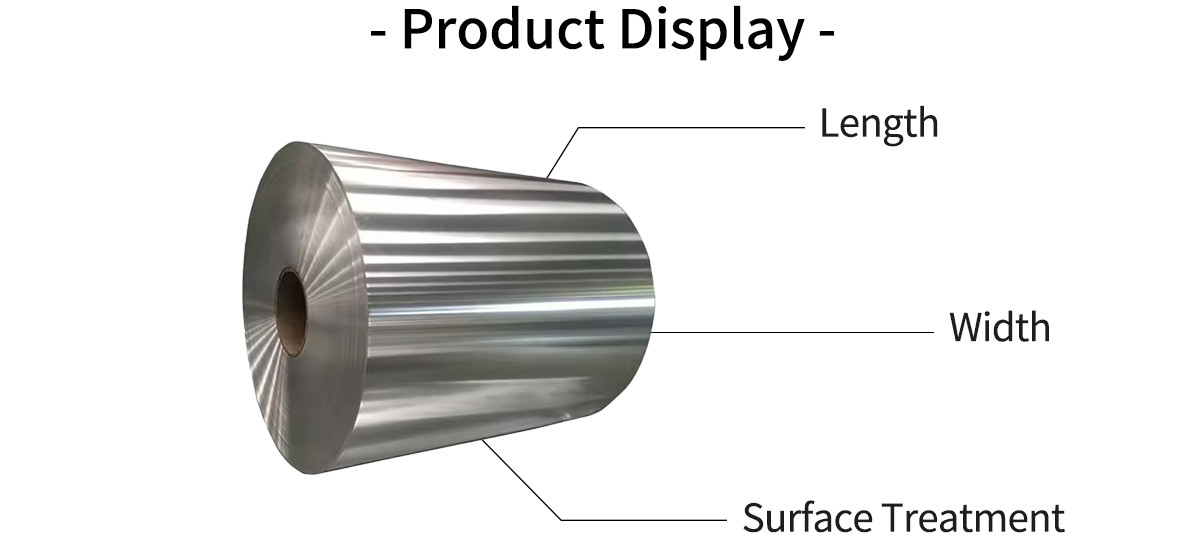

1050 Aluminum Coil
1050 aluminum alloy is formed by adding a small amount of copper in pure aluminum, which has excellent forming characteristics, high corrosion resistance, good weldability and electrical conductivity. It is widely used in products with low strength requirements, such as chemical instruments, sheet metal processing parts, deep drawing or spinning concave vessels, welding parts, heat exchangers, clock
+8613220597655
8613220597655
sales2@taigang-steel.com
Quick Quote
Contact Us


Product Description

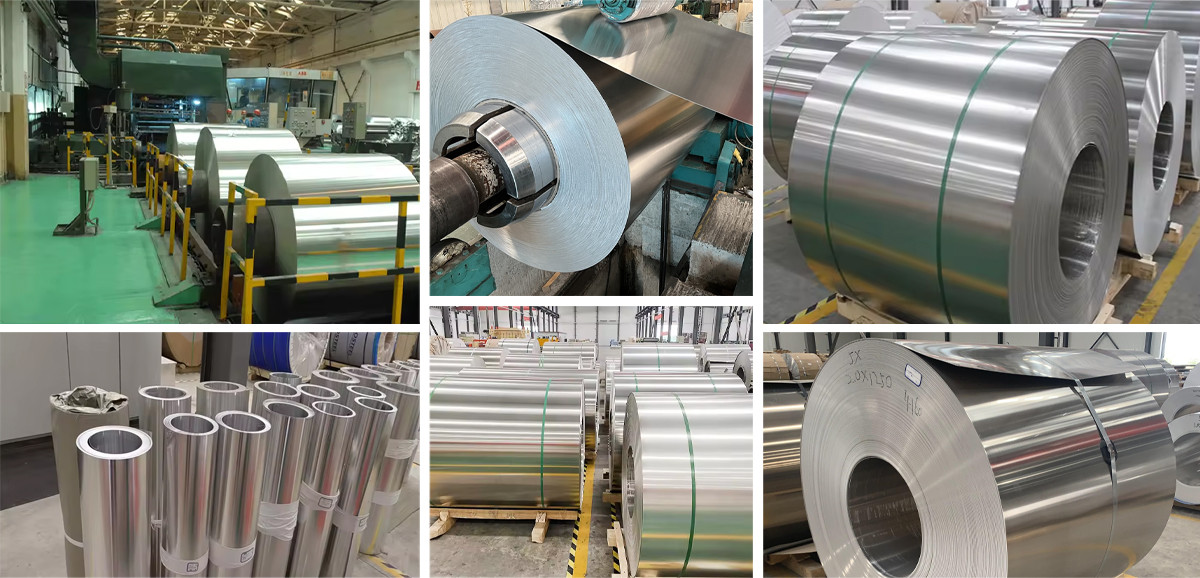

Factory

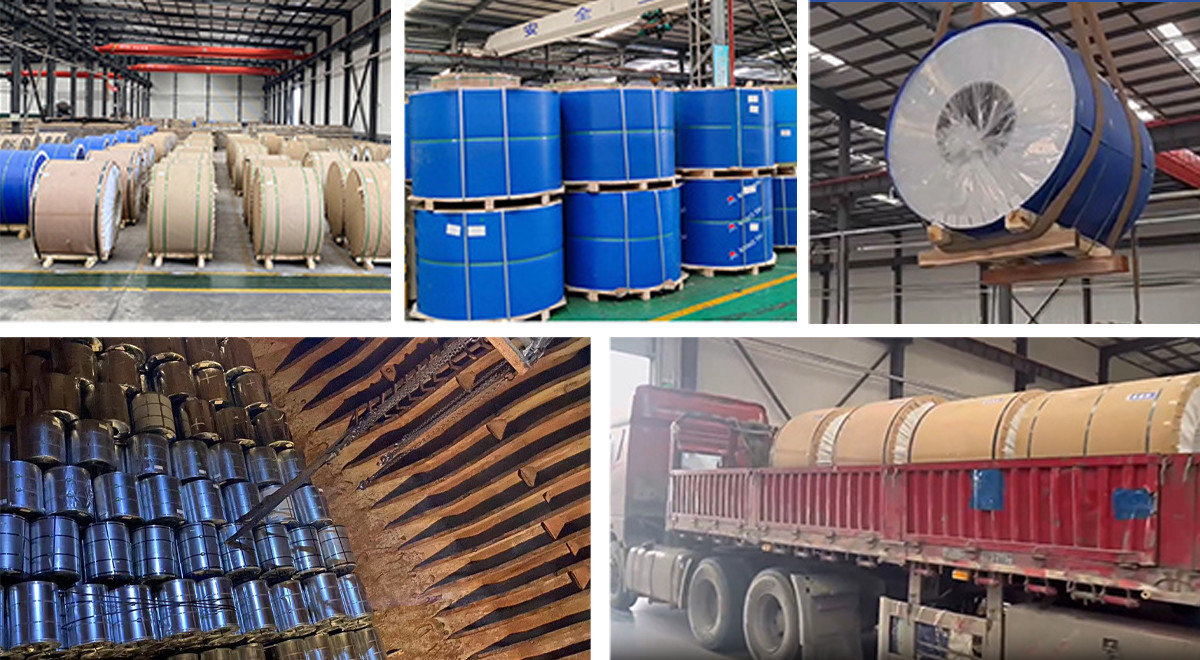

Packing & Transportation
Product Parameters
Width20-3000mm or customizedThickness0.1-120mm or customized
Length100-12000mm or customizedCertificateISO, SGS, BV
StandardJIS, AISI, ASTM, GB, DIN, EN, etc.
Brand1000 Series: 1050 1060 1070 1100 1200 1235 etc.3000 Series: 3003 3004 3005 3104 3105 3A21 etc.5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc.6000 Series: 6061 6063 6082 6A02 etc.7000 Series: 7050 7475 7075 etc.8000 Series: 8A06 8011 8090 etc.
SurfaceCoating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM ServicePunching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc.
Delivery TimeReceived 30% after deposit 7-15 working days
ApplicationConstruction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields
SampleFree Offers Sample
PackagingStrapping, Plastic bag, Film, Wooden pallet standard seaworthy export packing or according to customer requirement



Chemical Composition

AlloySiFeCuMnMgCrZnTiOthers:EachOthers:TotalAl: Min.
10500.250.400.050.050.05-0.050.030.03-99.50
10600.250.350.050.030.03-0.050.030.03-99.60
10700.200.250.040.030.03-0.040.030.05-99.70
11000.95 Si Fee0.05~0.200.05--0.1-0.050.1599.0
20140.5~1.20.73.9~5.00.4~1.20.2~0.80.100.250.150.050.15Allowance
20170.2~0.80.73.5~4.50.4~1.00.4~0.80.100.250.150.050.1591.5 - 95.5
20240.500.503.8~4.90.3~0.91.2~1.80.100.250.150.050.15Allowance
30030.600.700.05~0.201.0~1.5--0.10-0.050.15Allowance
3A210.600.700.201.0-1.60.05-0.150.1-0.2--Allowance
30040.300.700.251.0~1.50.8~1.3-0.25-0.050.15Allowance
30050.600.700.301.0~1.50.2~0.60.100.250.100.050.15Allowance
31050.600.700.300.3~0.80.2~0.80.200.400.100.050.15Allowance
50050.300.700.200.200.5~1.10.10.25-0.050.15Allowance
50520.250.400.100.102.2~2.80.15~0.350.10-0.050.15Allowance
57540.400.400.100.502.6~3.60.300.200.150.050.15Allowance
5A050.500.500.100.3-0.64.8-5.5-0.20-0.050.05Allowance
50830.400.400.100.4~1.04.0~4.90.05~0.250.250.150.050.15Allowance
60610.40~0.80.700.15~0.40.150.8~1.20.04~0.350.250.150.050.15Allowance
60820.70~1.30.500.100.4~1.00.6~1.20.250.200.100.050.15Allowance
70750.400.501.2~2.00.302.1~2.90.18~0.285.1~6.10.200.050.15Allowance



Mechanical Properties

Tensile Strength (MPa)Test Stress0.2% (MPa)HardnessHBElongation Rate(%)
105-145≥85≥34≥12



Physical Performance

DensityMelting PointModulus of ElasticityThermal ConductivityThermal ExpansionResistivity
2.71 Kg/m³650°C71 GPa222 W/m.K24 × 10-6/K0.282 × 10-6Ω.m



Annealing State

BrandAnnealing State
1xxx: 1050, 1050A, 1060, 1100O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082T4, T6, T451, T651
2xxx: 2024T3, T351, T4
7xxx: 7075T6, T651



Scope of Application

Aluminum Uses And Application Area
Food PackagingBeverage can ends, cans, bottle caps, etc.
BuildingCurtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
TransportationAuto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic EquipmentElectrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer GoodsUmbrellas, cooking utensils, sports equipment, etc
OtherMilitary, color coated aluminum plate



- Company Honor -

- FQA -

Q:Are you trading company or manufacturer ?
A: We are professional manufacturer, providing a wide range of steel products.

Q:Do you provide samples ?
A:Yes ,we would provide samples For Free .The courier freight will be covered by customer’s account.
Q:Could you customized as our request?
A:Yes, just tell your demands, we can offer the customized solution for you, such as material, hardness, thickness,width and so on.

Q:How can I visit your factory ?
A:Welcome to visit our factory at any time. We will help you accessing the business visa to China . Assist arranging your schedule in China ,including the factory visiting , products quality checking , car picking up, hotel booking , food service etc.
