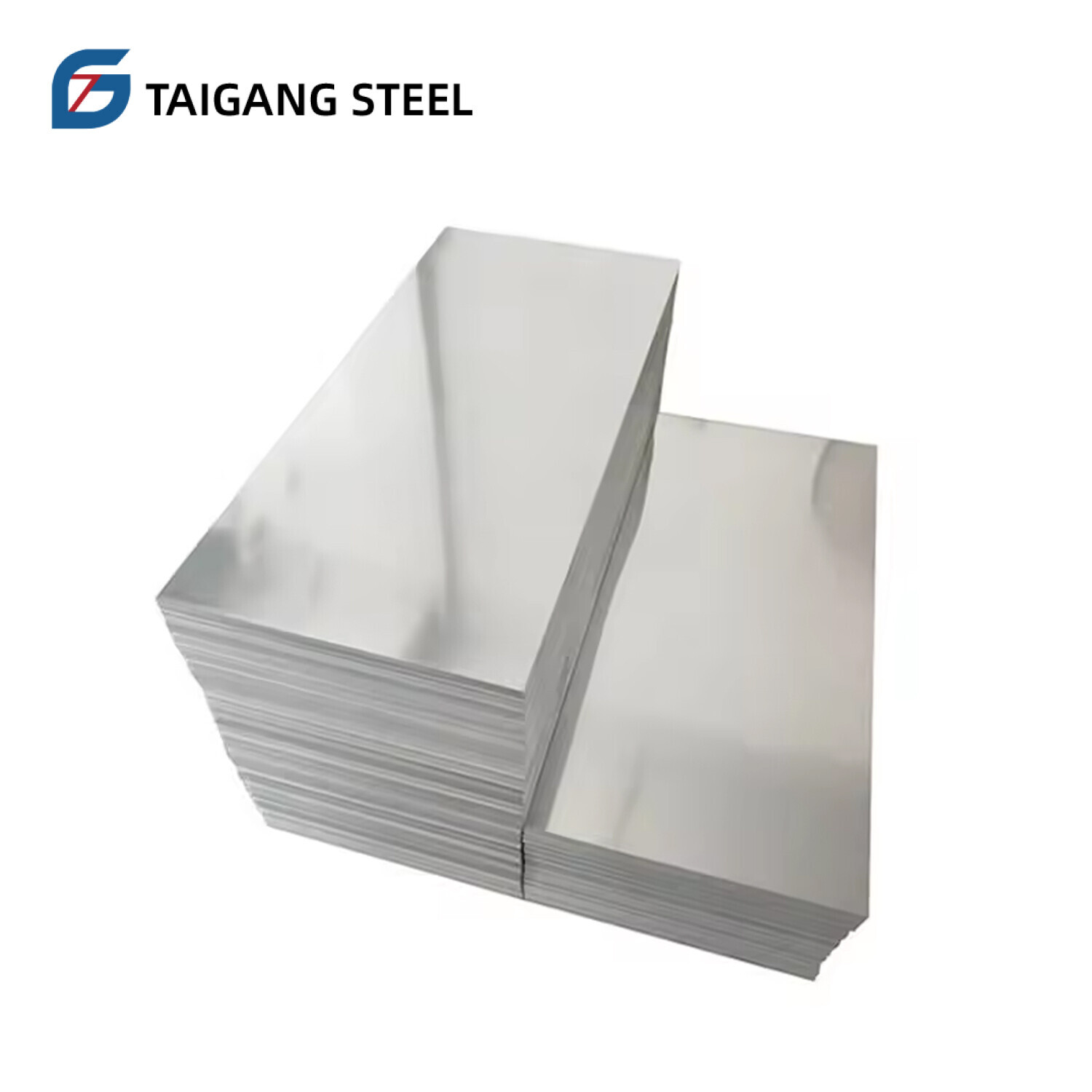

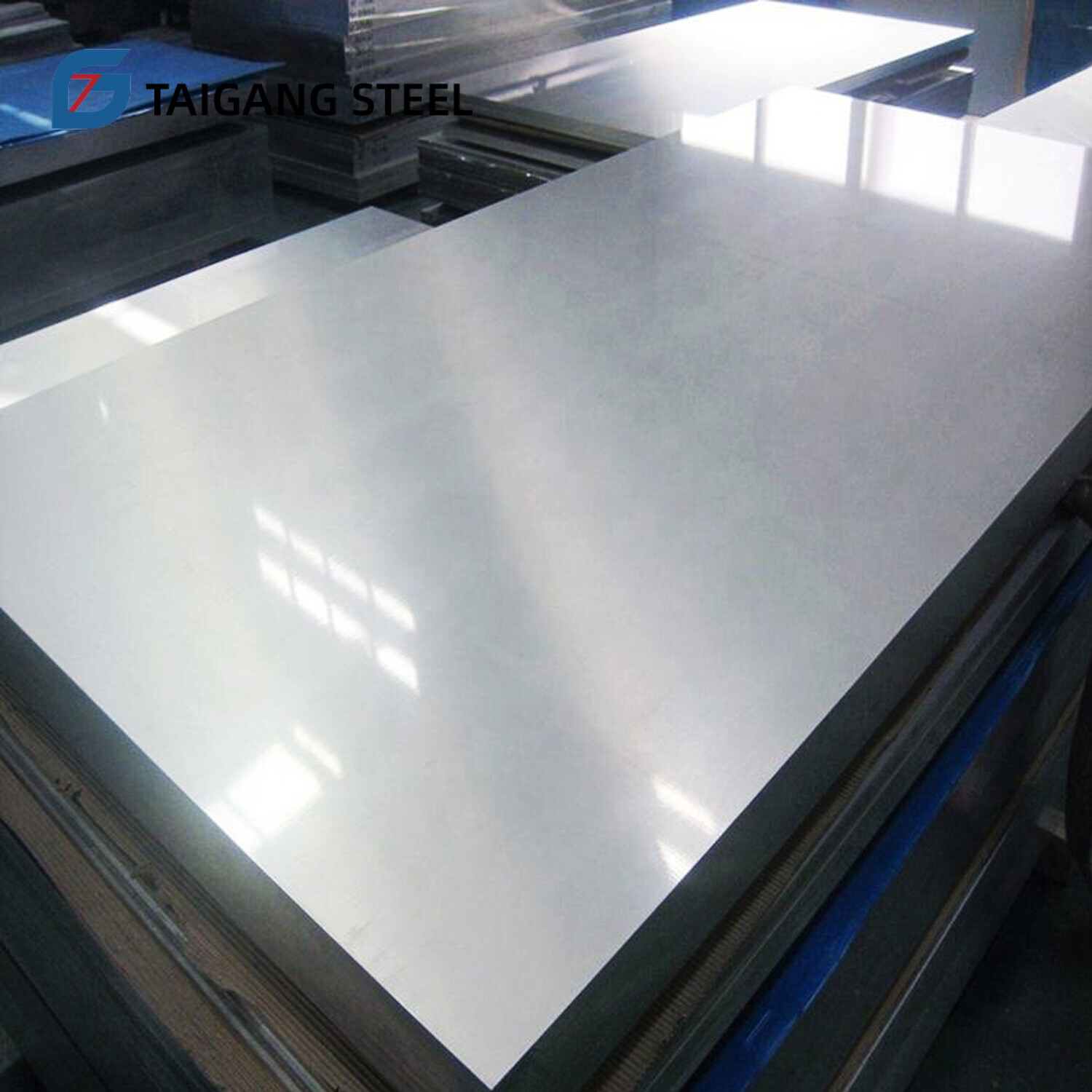

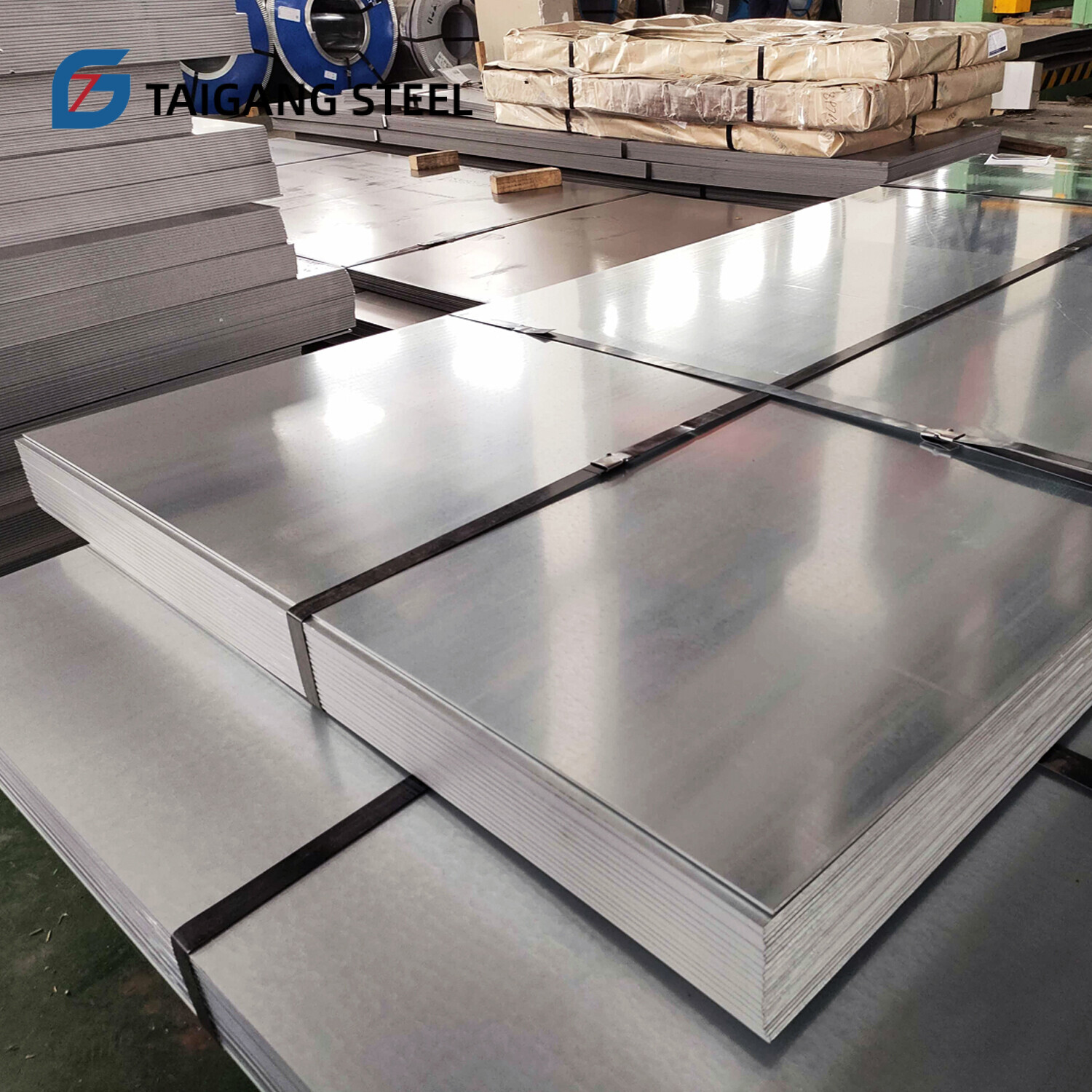

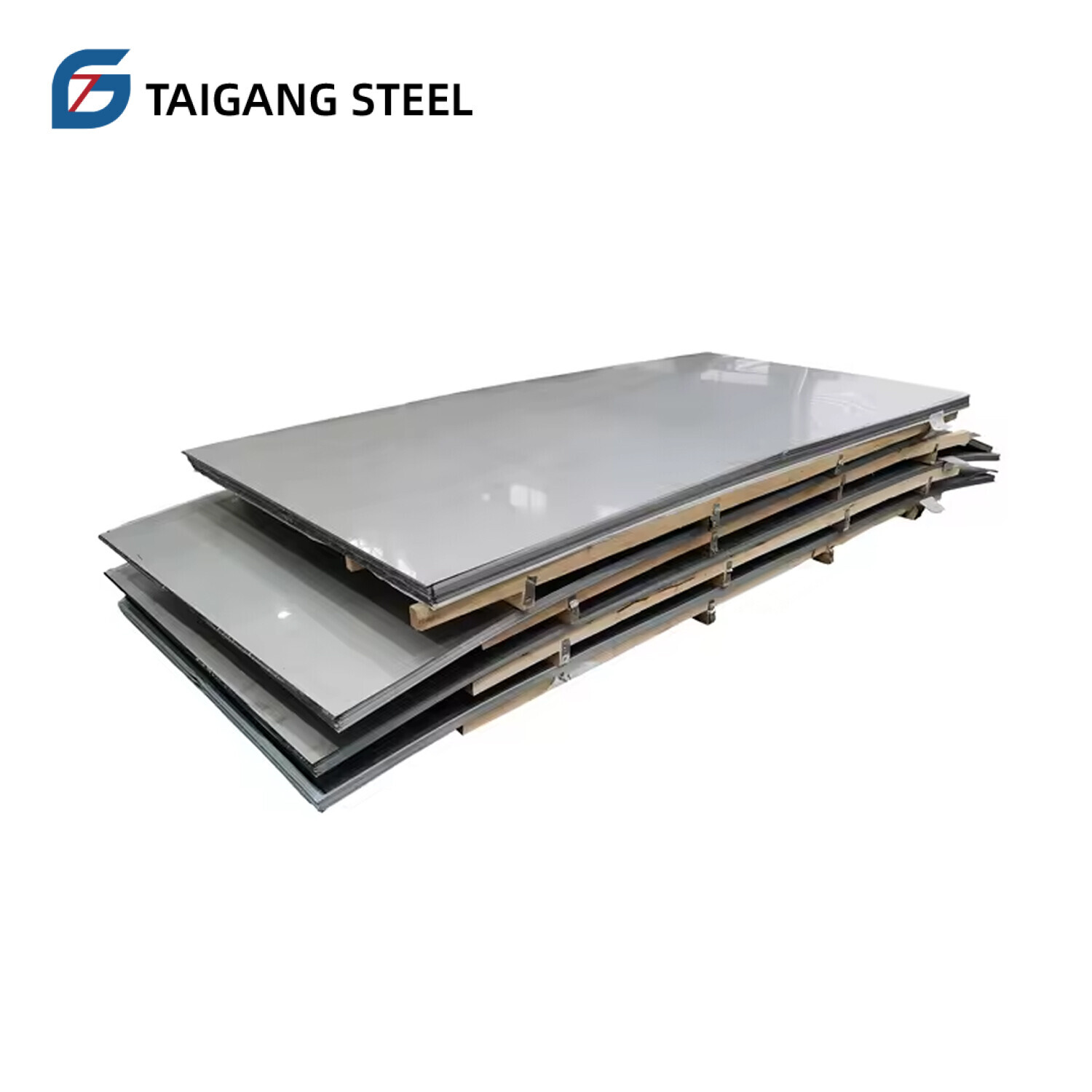

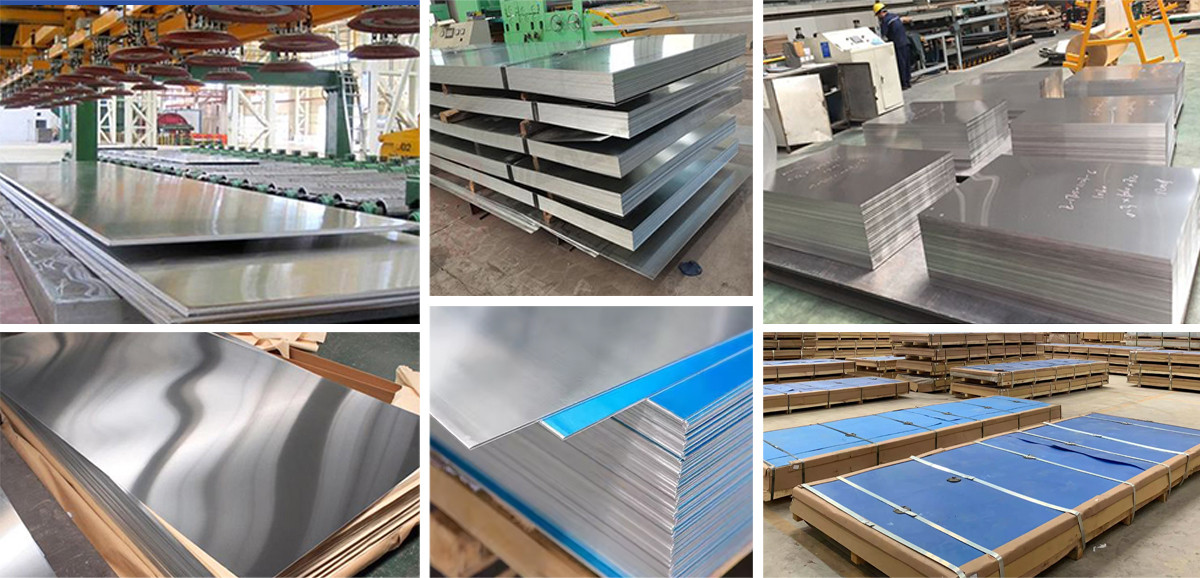

1050 Aluminum Plate
1050 aluminum alloy is formed by adding a small amount of copper in pure aluminum, which has excellent forming characteristics, high corrosion resistance, good weldability and electrical conductivity. It is widely used in products with low strength requirements, such as chemical instruments, sheet metal processing parts, deep drawing or spinning concave vessels, welding parts, heat exchangers, clock surface and disk surface, nameplate, kitchen utensils, decorations, reflective appliances, etc.
+8613220597655
8613220597655
sales2@taigang-steel.com
Quick Quote
Contact Us


Product Description

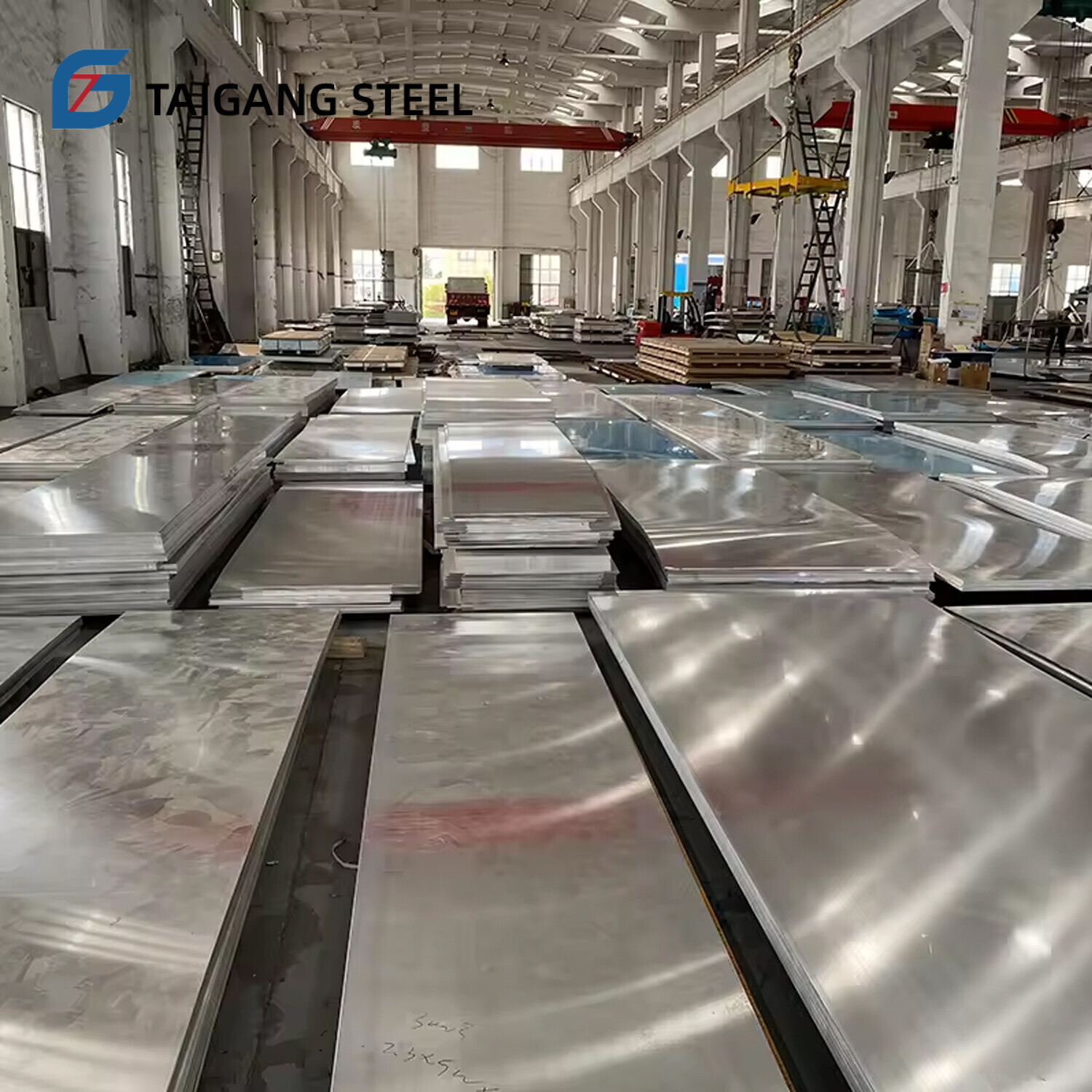

Factory

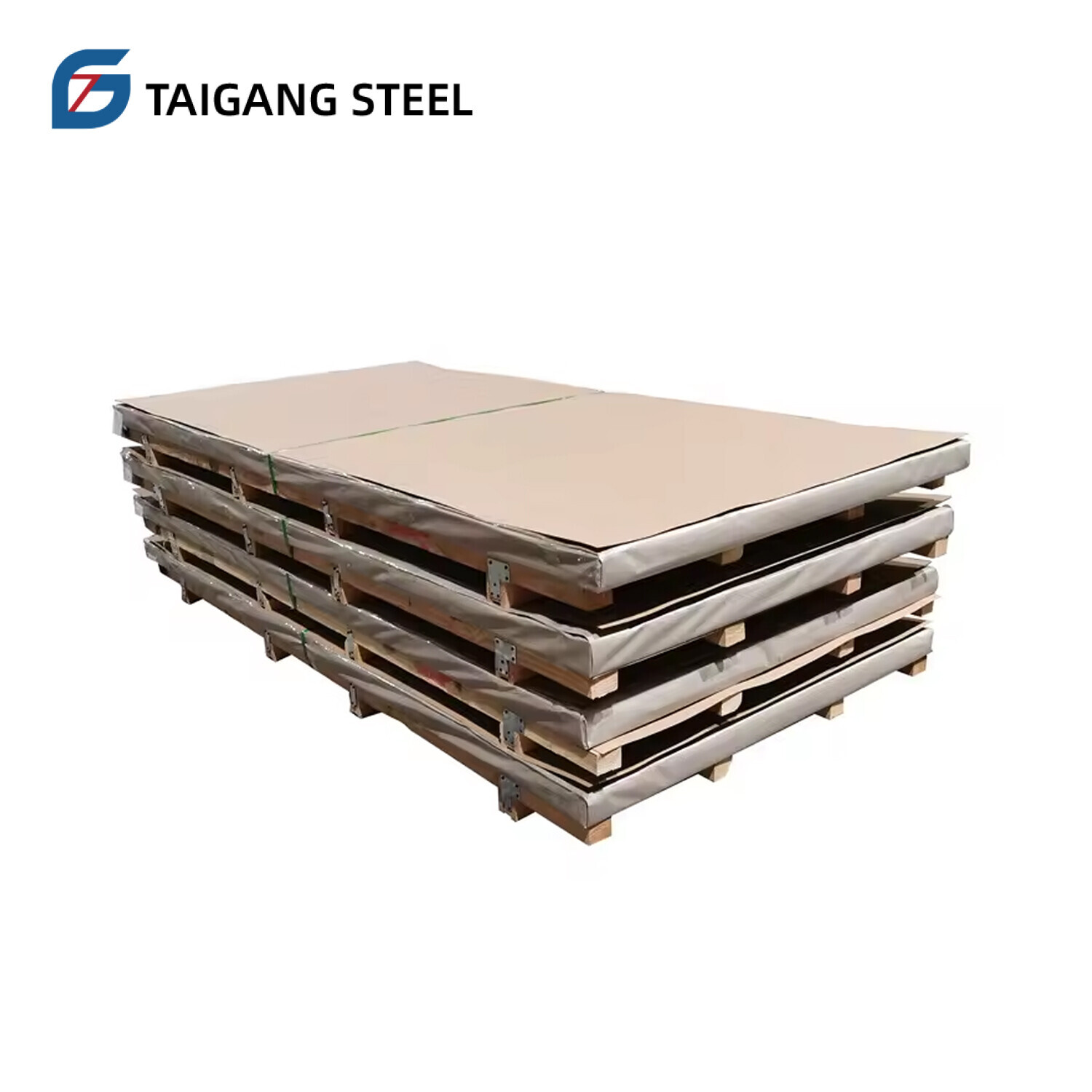

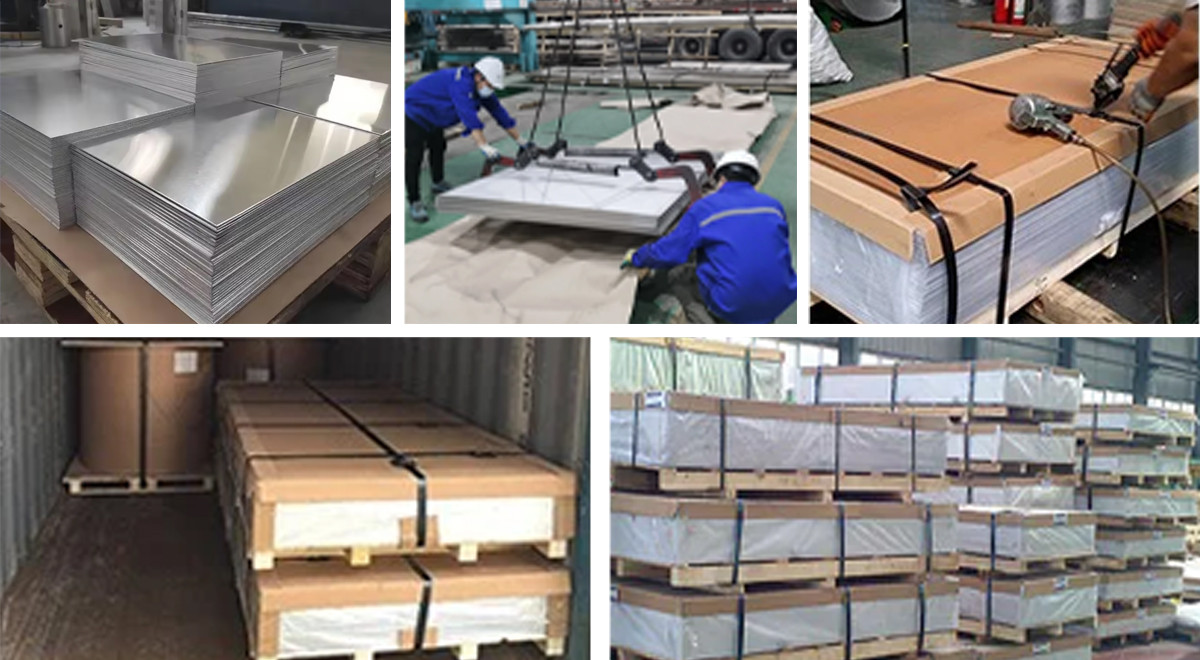

Packing & Transportation

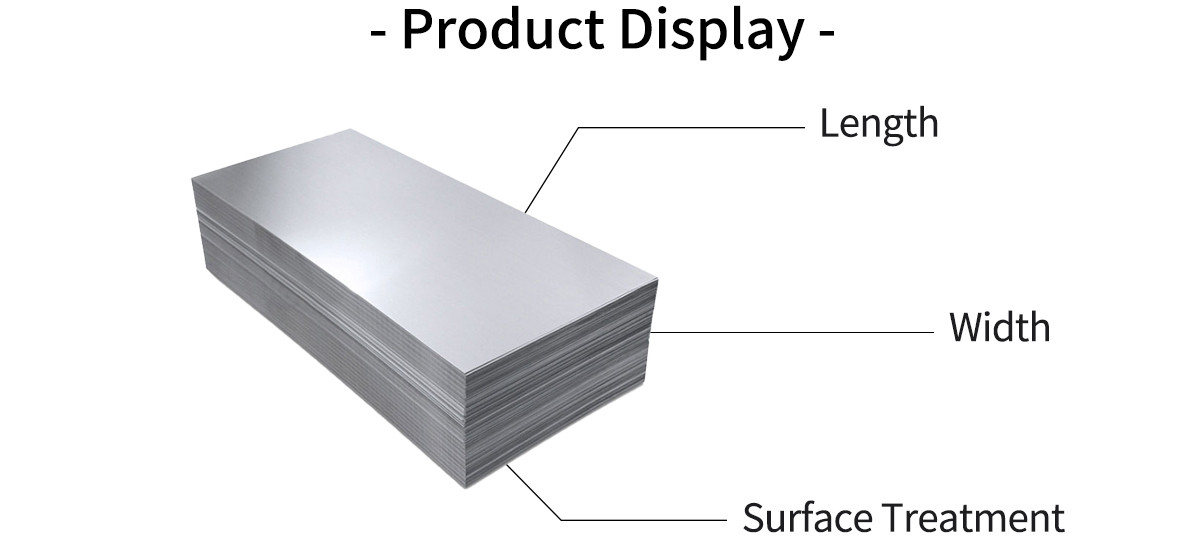

Product Parameters
Width20-3000mm or CustomizedThickness0.1-120mm or Customized
Length100-12000mm or CustomizedCertificateISO, SGS, BV
StandardJIS, AISI, ASTM, GB, DIN, EN, etc.
Brand1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc.3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc.5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc.6000 Series: 6061, 6063, 6082, 6A02, etc.7000 Series: 7050, 7475, 7075, etc.8000 Series: 8A06, 8011, 8090, etc.
SurfaceCoating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM ServicePunching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc.
Delivery TimeReceived 30%, After deposit 7-15 working day
ApplicationConstruction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc.
SampleFree Offers Sample
PackagingStrapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement



Chemical Composition

AlloySiFeCuMnMgCrZnTiOthers:EachOthers:TotalAl: Min.
10500.250.400.050.050.05-0.050.030.03-99.50
10600.250.350.050.030.03-0.050.030.03-99.60
10700.200.250.040.030.03-0.040.030.05-99.70
11000.95 Si Fee0.05~0.200.05--0.1-0.050.1599.0
20140.5~1.20.73.9~5.00.4~1.20.2~0.80.100.250.150.050.15Margin
20170.2~0.80.73.5~4.50.4~1.00.4~0.80.100.250.150.050.1591.5 - 95.5
20240.500.503.8~4.90.3~0.91.2~1.80.100.250.150.050.15Margin
30030.600.700.05~0.201.0~1.5--0.10-0.050.15Margin
3A210.600.700.201.0-1.60.05-0.150.1-0.2--Margin
30040.300.700.251.0~1.50.8~1.3-0.25-0.050.15Margin
30050.600.700.301.0~1.50.2~0.60.100.250.100.050.15Margin
31050.600.700.300.3~0.80.2~0.80.200.400.100.050.15Margin
50050.300.700.200.200.5~1.10.10.25-0.050.15Margin
50520.250.400.100.102.2~2.80.15~0.350.10-0.050.15Margin
57540.400.400.100.502.6~3.60.300.200.150.050.15Margin
5A050.500.500.100.3-0.64.8-5.5-0.20-0.050.05Margin
50830.400.400.100.4~1.04.0~4.90.05~0.250.250.150.050.15Margin
60610.40~0.80.700.15~0.40.150.8~1.20.04~0.350.250.150.050.15Margin
60820.70~1.30.500.100.4~1.00.6~1.20.250.200.100.050.15Margin
70750.400.501.2~2.00.302.1~2.90.18~0.285.1~6.10.200.050.15Margin



Mechanical Properties

Tensile Strength (MPa)Test Stress0.2% (MPa)HardnessHBElongation Rate(%)
105-145≥85≥34≥12



Physical Performance

DensityMelting PointModulus of ElasticityThermal ConductivityThermal ExpansionResistivity
2.71 Kg/m³650°C71 GPa222 W/m.K24 × 10-6/K0.282 × 10-6Ω.m



Annealing State

BrandAnnealing State
1xxx: 1050, 1050A, 1060, 1100O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082T4, T6, T451, T651
2xxx: 2024T3, T351, T4
7xxx: 7075T6, T651



Scope of Application

Aluminum Uses And Application Area
Food PackagingBeverage can ends, cans, bottle caps, etc.
BuildingCurtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
TransportationAuto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic EquipmentElectrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer GoodsUmbrellas, cooking utensils, sports equipment, etc
OtherMilitary, color coated aluminum plate, etc.



- Company Honor -

- FQA -

Q:Are you trading company or manufacturer ?
A: We are professional manufacturer, providing a wide range of steel products.

Q:Do you provide samples ?
A:Yes ,we would provide samples For Free .The courier freight will be covered by customer’s account.
Q:Could you customized as our request?
A:Yes, just tell your demands, we can offer the customized solution for you, such as material, hardness, thickness,width and so on.

Q:How can I visit your factory ?
A:Welcome to visit our factory at any time. We will help you accessing the business visa to China . Assist arranging your schedule in China ,including the factory visiting , products quality checking , car picking up, hotel booking , food service etc.
