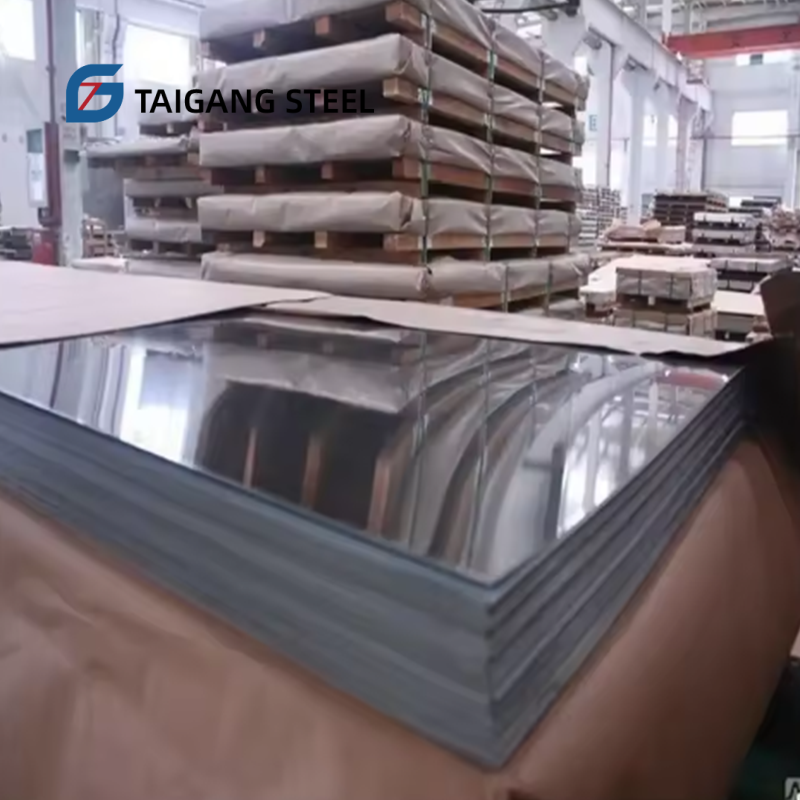

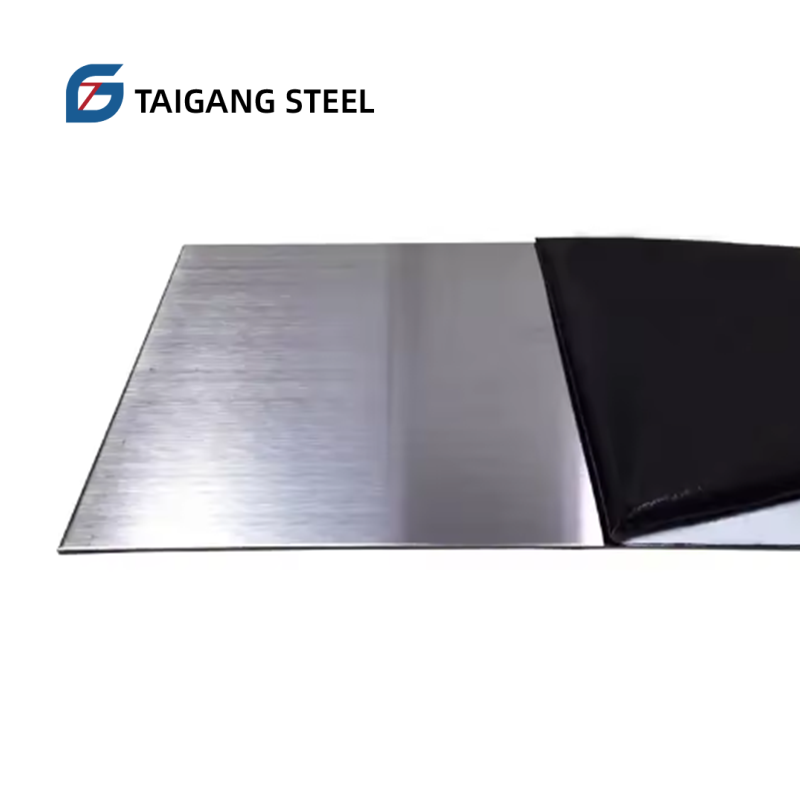

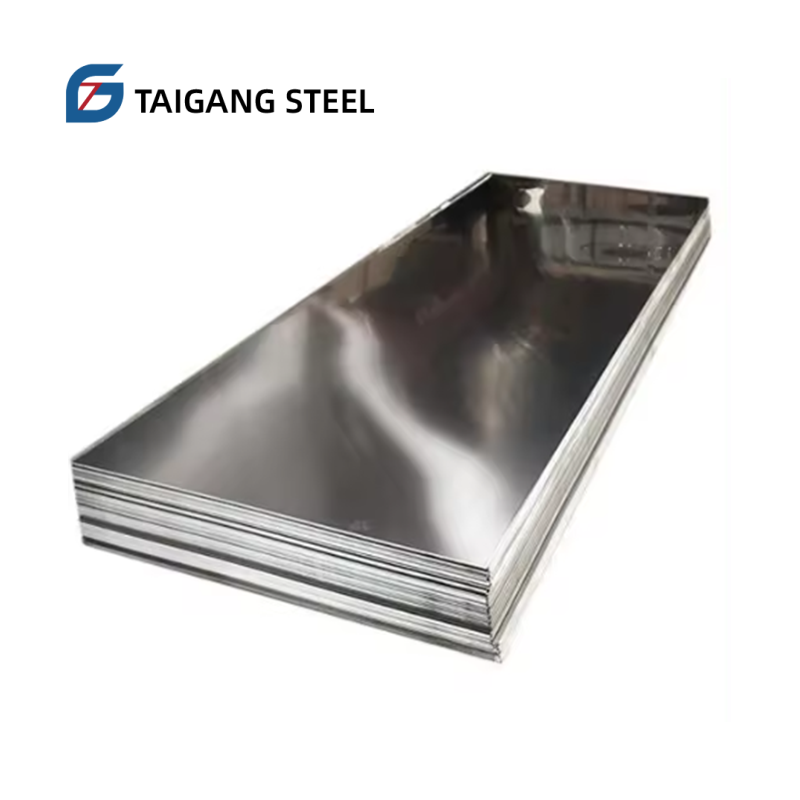

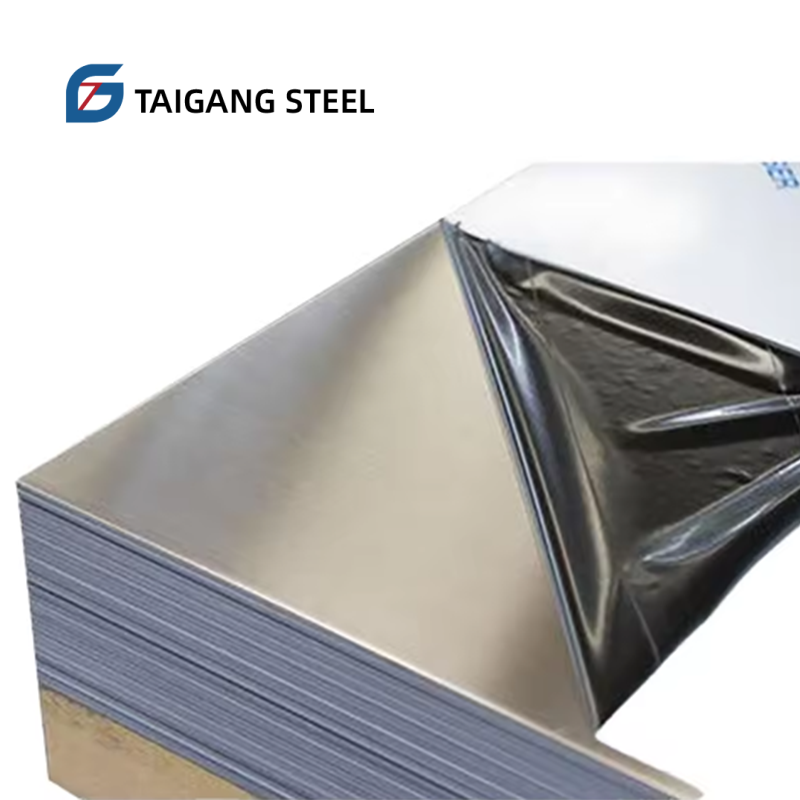

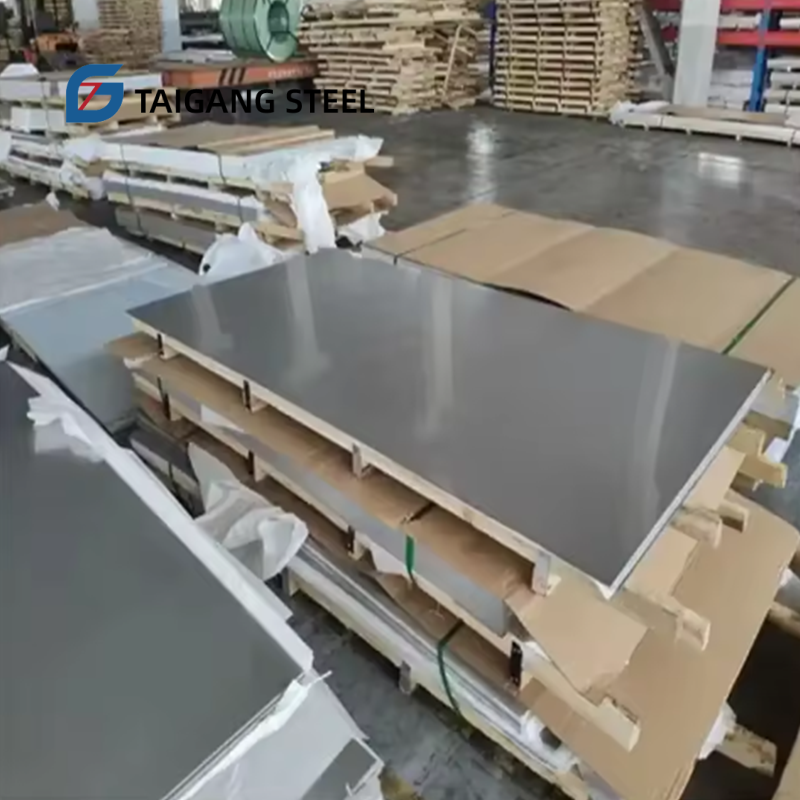

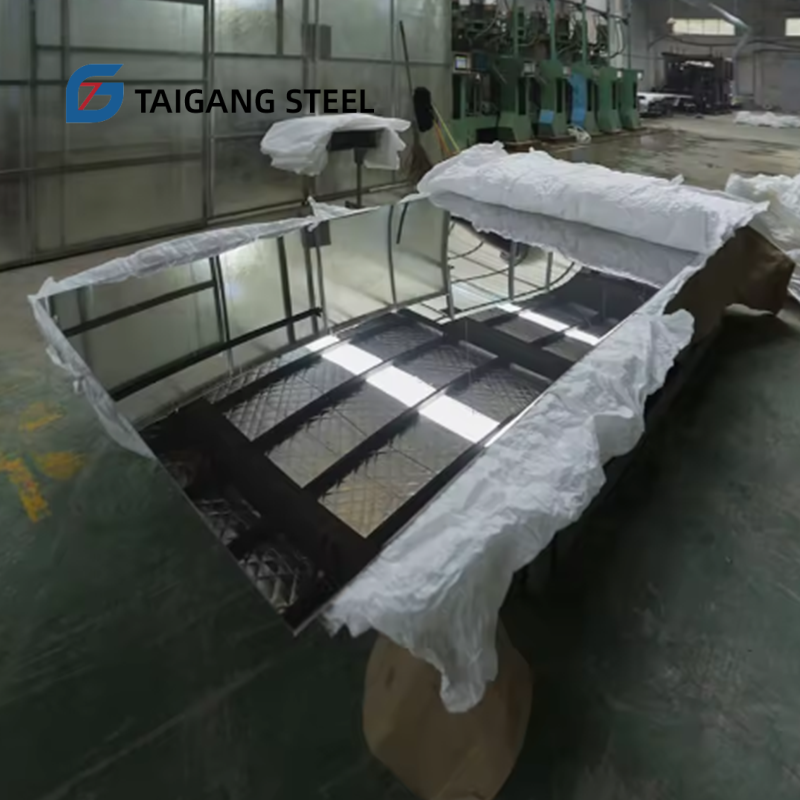

304 Stainless Steel Plate
304 stainless steel highly stands out in terms of corrosion resistance, heat resistance, low temperature strength and mechanical properties, being one of the most widely used types of stainless steel. In addition, it has exceptional hot-workability such as stamping and bending, without leaving heat treatment hardening phenomenon.
+8613220597655
8613220597655
sales2@taigang-steel.com
Quick Quote
Contact Us

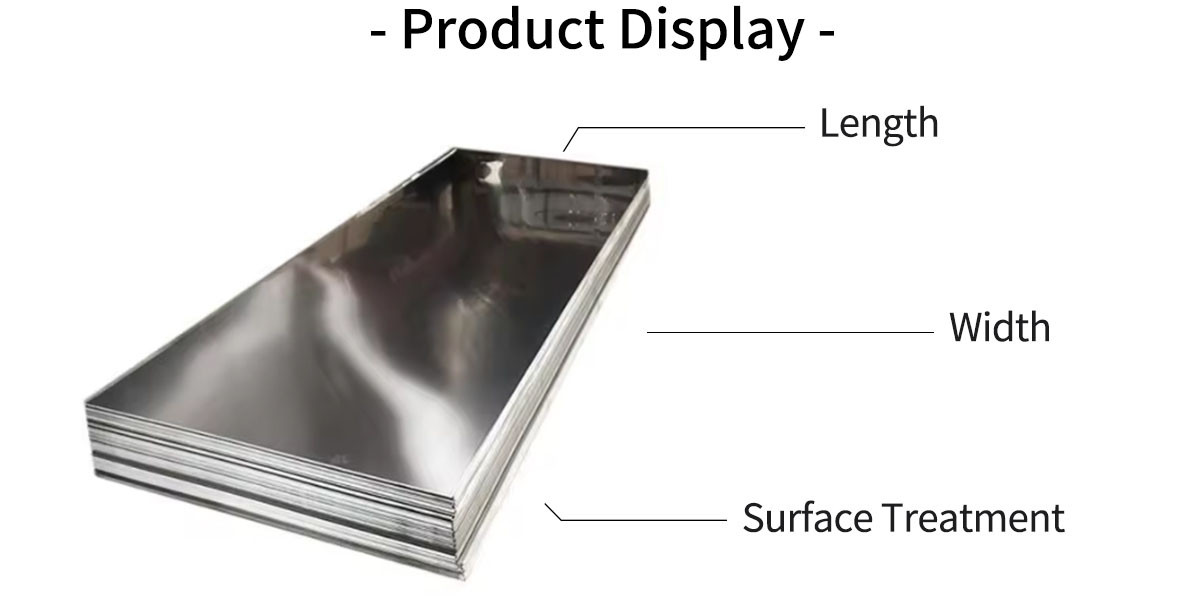

不锈钢板 (1).jpg

Product Description

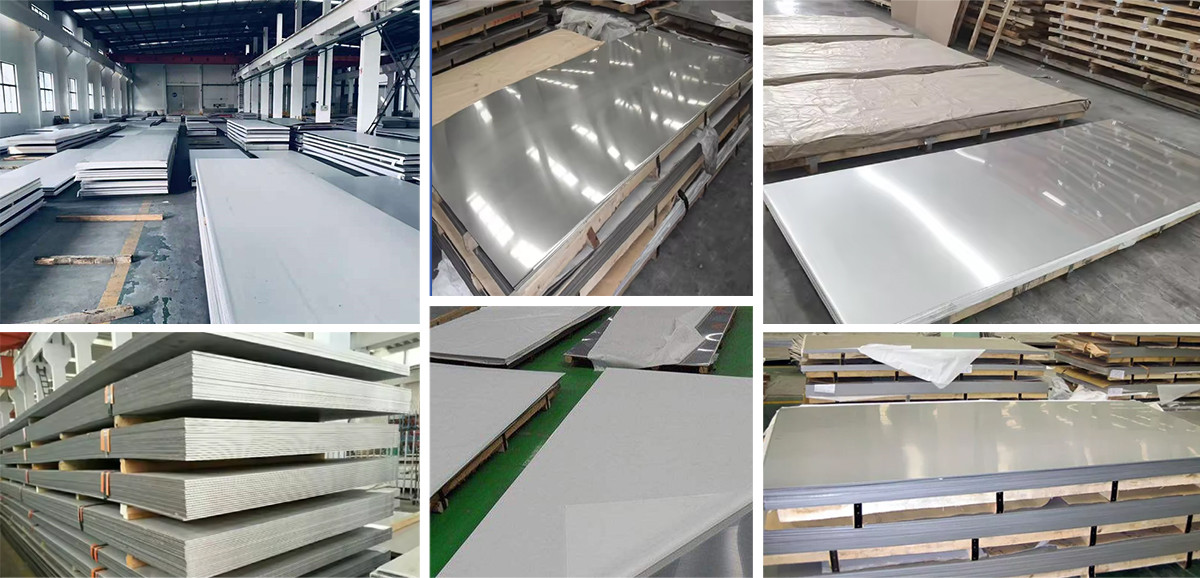

Factory

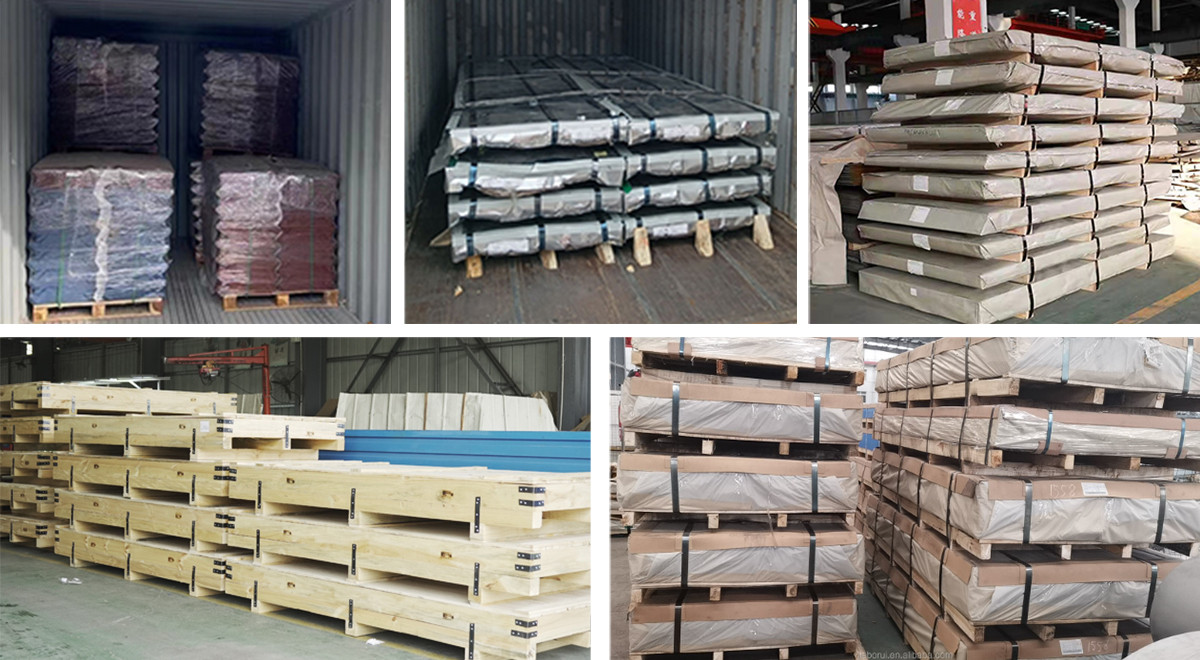

Packing & Transportation
Product Parameters
Product Name304 Stainless Steel Plate
TypePlate
Thickness0.3mm-200mm
Length2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of ApplicationWidely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging,Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.
CertificateISO, SGS, BV, etc.
Production TechnologyHot Rolling, Cold Rolling
Edge ProcessingEdging, Trimming



Chemical Composition

CSiMnCrNiSP
≤ 0.08≤1.0≤ 2.018.0～20.08.0～10.5≤ 0.03≤ 0.035



Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥ 520≥ 205≥ 40≤ 187HB ;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
8.0319316.916.272

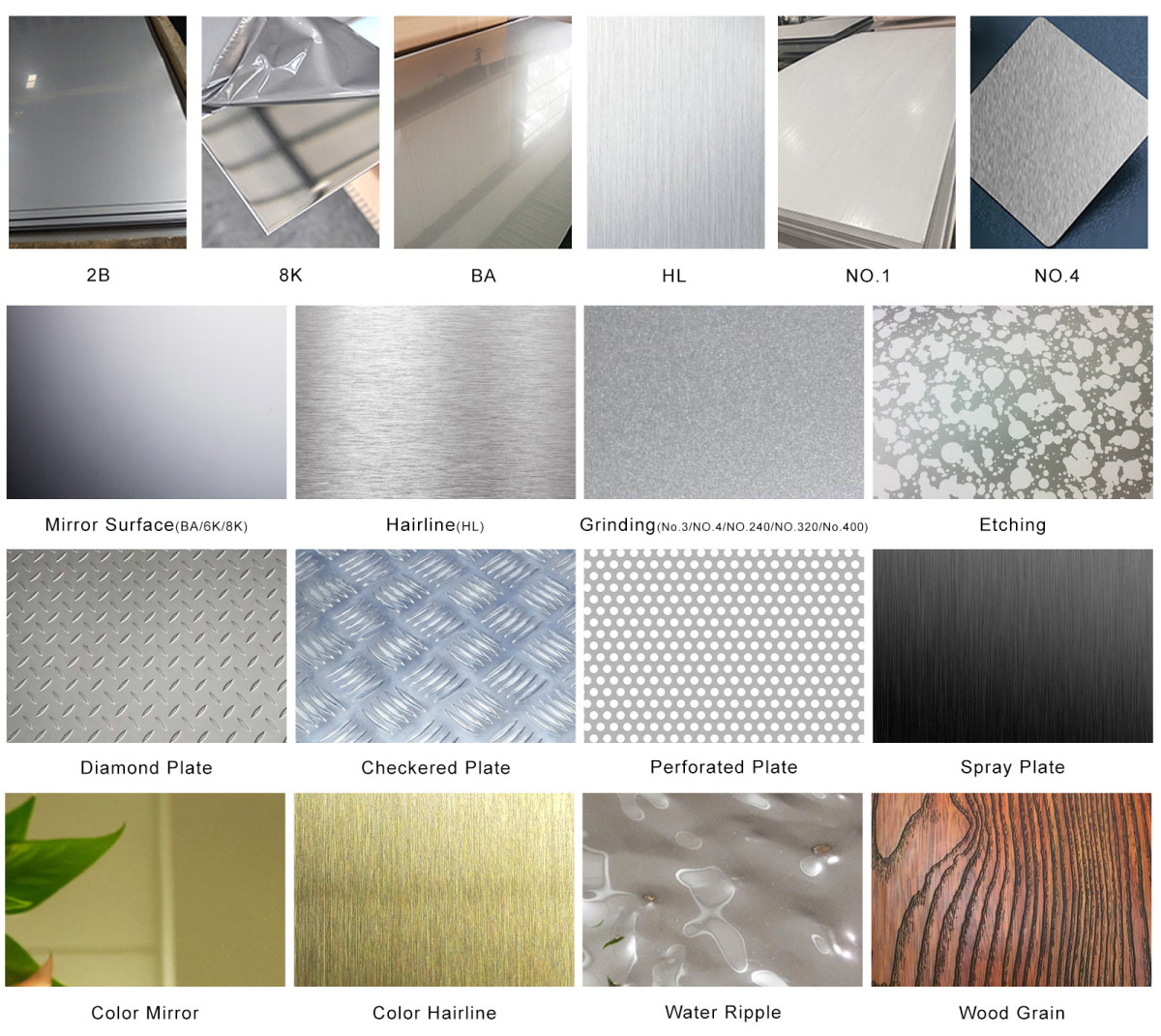

Surface Selection


不锈钢板 (2).jpg

不锈钢板 (3).jpg

- Company Honor -

- FQA -

Q:Are you trading company or manufacturer ?
A: We are professional manufacturer, providing a wide range of steel products.

Q:Do you provide samples ?
A:Yes ,we would provide samples For Free .The courier freight will be covered by customer’s account.
Q:Could you customized as our request?
A:Yes, just tell your demands, we can offer the customized solution for you, such as material, hardness, thickness,width and so on.

Q:How can I visit your factory ?
A:Welcome to visit our factory at any time. We will help you accessing the business visa to China . Assist arranging your schedule in China ,including the factory visiting , products quality checking , car picking up, hotel booking , food service etc.
