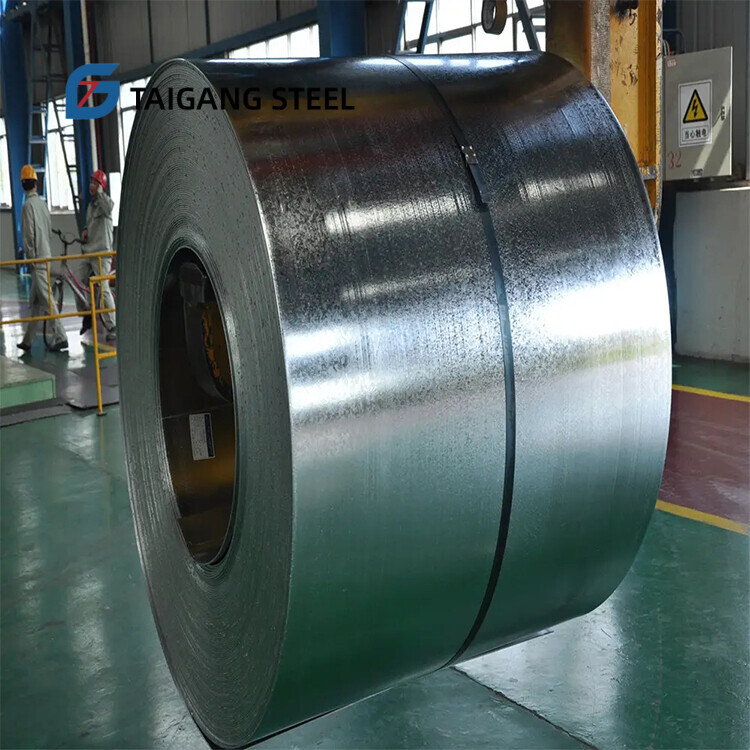

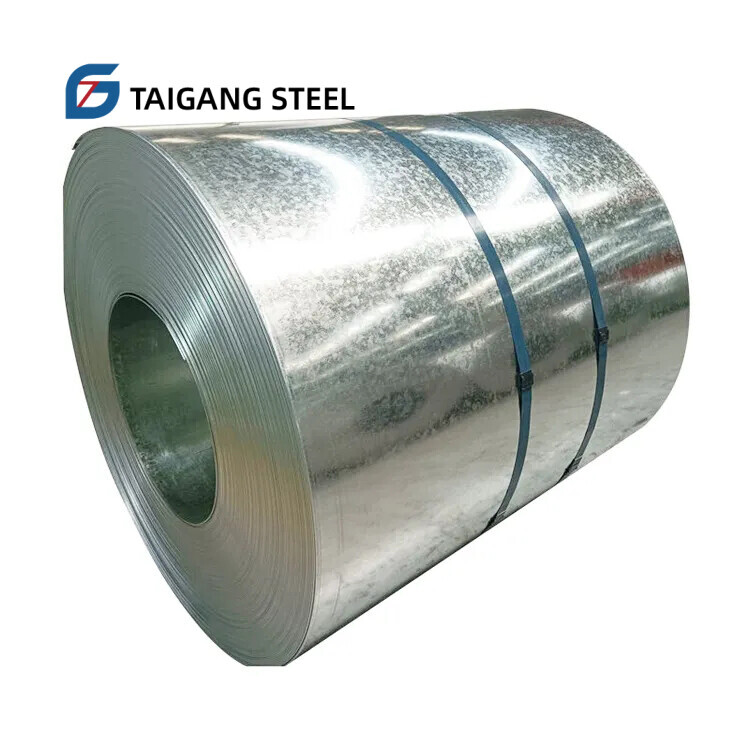

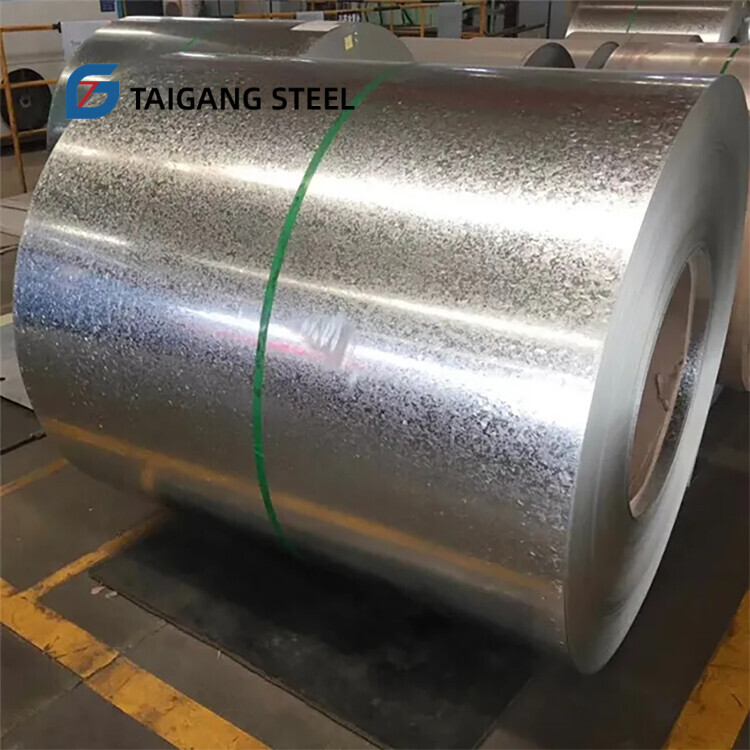

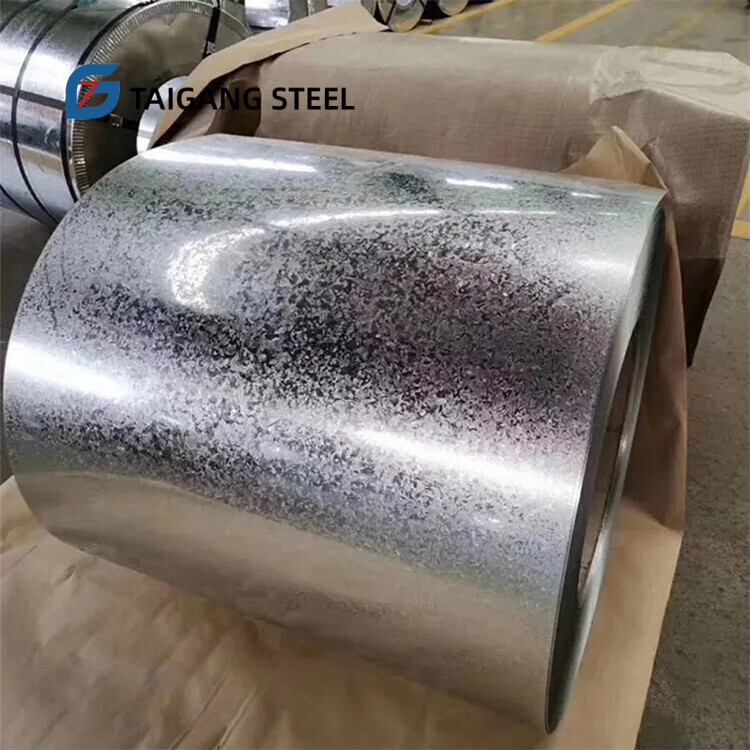

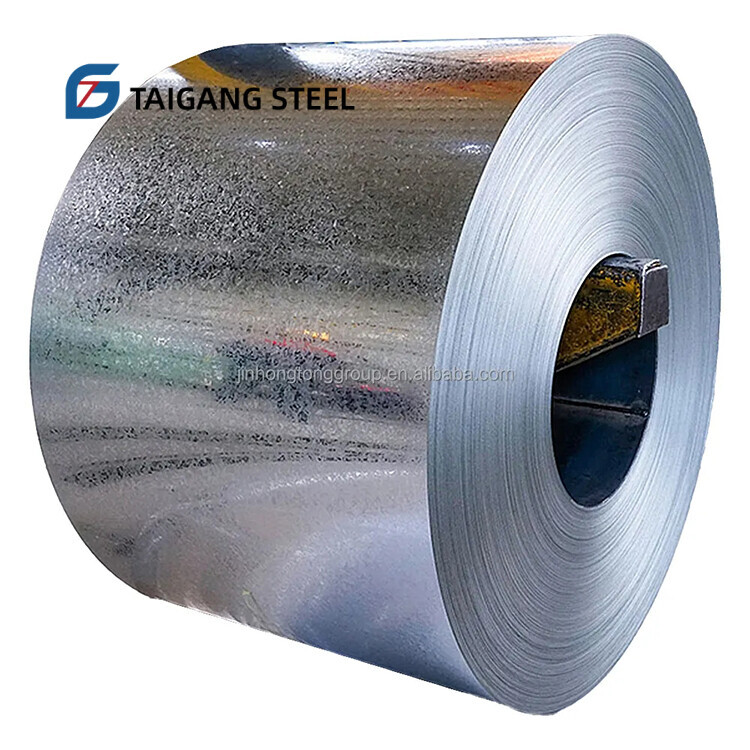

AZ150 Galvalume Steel Coil
AZ150 galvalume steel coil has a coating thickness of 18 microns on one side and 36 microns on both sides. The coating alloy of the steel consists of 55% aluminium, 43.4% zinc and 1.6% silica. This coating of steel acts as a passive barrier to general corrosion. It also helps protect steel from trimmed edges and scratches.
Quick Quote
Contact Us


Product Description
Factory
Packing & Transportation
Product Parameters
Product NameAZ150 Galvalume Steel Coil
Thickness0.12mm-6.00mm
Width600mm-1500mm
Length1m-12m, Support Customization
StandardAISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Thickness of Aluminum Zinc Coating30-185g/m²
Content of Al-Zn Coating Al: 55%, Zn: 43.5%, Si: 1.5%



Chemical Composition

AlZnSiFeCuCdPbSnNiClose Cr
55-5841-431.5-20.250.030.050.010.050.050.05



Mechanical Properties

GradeYield Strength MPa≥Tensile Strength MPa≥Elongation A%≥
DX51D Z/ZM/AZ/AM240-380270-50022
DX52D Z/ZM/AZ/AM140-300270-42026
DX53D Z/ZM/AZ/AM140-260270-38030
DX54D Z/ZM/AZ/AM120-220260-35036
S220GD Z/ZM/AM22030020
S250GD Z/ZM/AZ/AM25033019
S280GD Z/ZM/AM28036018
S300GD A/AM30038018
S320GD Z/ZM/AM32039017
S350GD Z/ZM/AZ/AM35042016
S450GD A/AM45048015
S550GD Z/ZM/AZ/AM550550-



Galvanized Surface Selection

Zero SpangleMinimized SpangleNormal SpangleLarge Spangle



Type of CoatingRecommended Coating Weight
Aluminum-zinc Alloy30/40/50/60/75/90/100/150
A: Coating quality50g/㎡,approximately equal to the coating thickness13.3pm



ProjectClassificationSymbol
Type of CoatingAluminum-zinc AlloyAZ
Surface FinishConventional SequinsR
Minimize SequinsM
Skin ThroughS
Surface TreatmentChromate Passivationc
Non-chromate PassivationC5
Chromate PassivationoilingCO
Chromium-free PassivationoilingCO5
Anti-fingerprintN
Chromate-free/Anti-fingerprintN5
No chromate high weather resistance fingerprintNW
Oil filling0
No treatmentU



Material Comparison

Chinese StandardEuropean StandardsAmerican StandardJapanese Standard
DC51D+AZDX51D+AZCS Type B, Type CSGLCC
DC52D+AZDX52D+AZDSSGLCD
S250GD+AZS250GD+AZ255-
S300GD+AZ---
S350GD+AZS350GD+AZ345Class1 SGLC490
S550GD+AZS550GD+AZ550SGLC570



- Company Honor -

- FQA -

Q:Are you trading company or manufacturer ?
A: We are professional manufacturer, providing a wide range of steel products.

Q:Do you provide samples ?
A:Yes ,we would provide samples For Free .The courier freight will be covered by customer’s account.
Q:Could you customized as our request?
A:Yes, just tell your demands, we can offer the customized solution for you, such as material, hardness, thickness,width and so on.

Q:How can I visit your factory ?
A:Welcome to visit our factory at any time. We will help you accessing the business visa to China . Assist arranging your schedule in China ,including the factory visiting , products quality checking , car picking up, hotel booking , food service etc.
