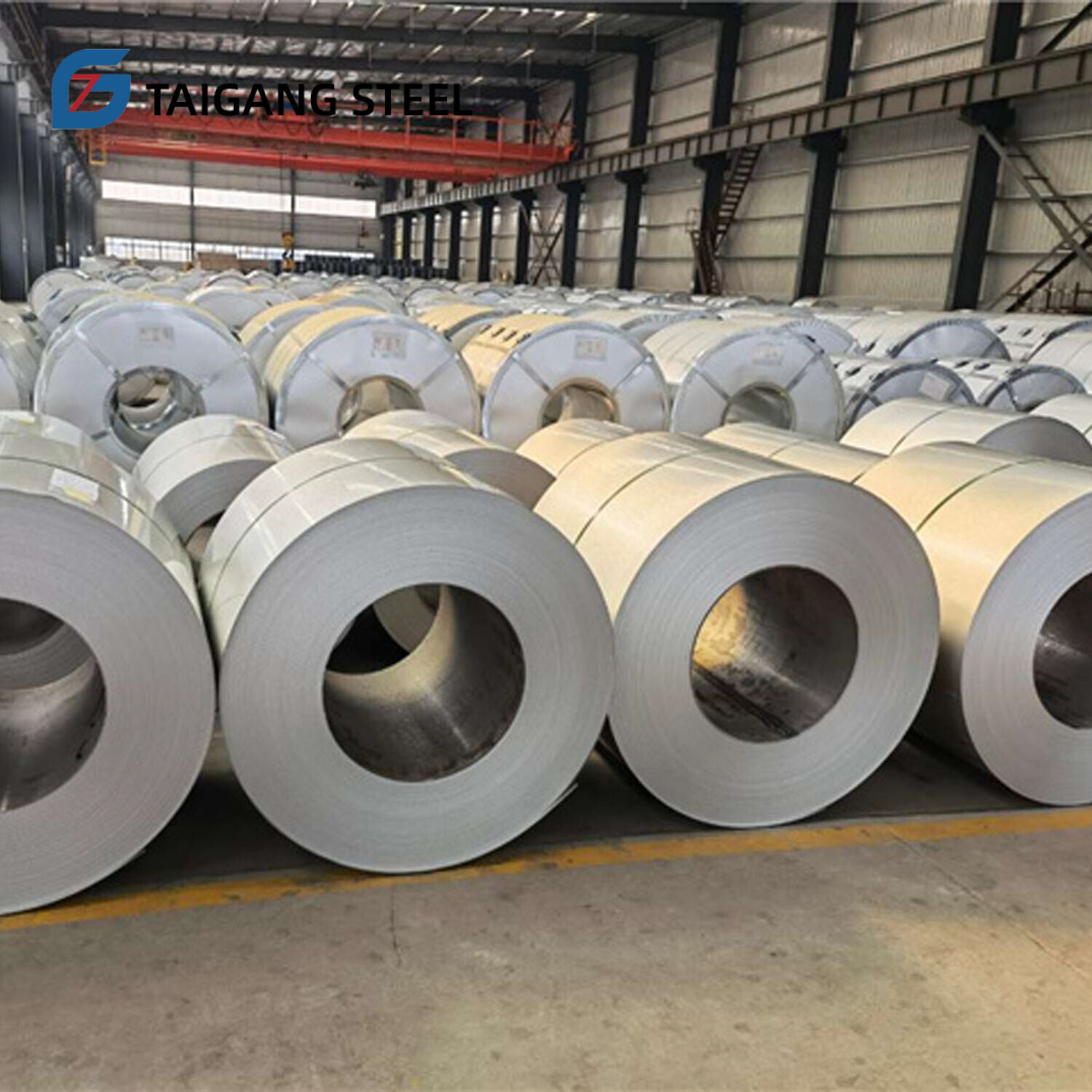

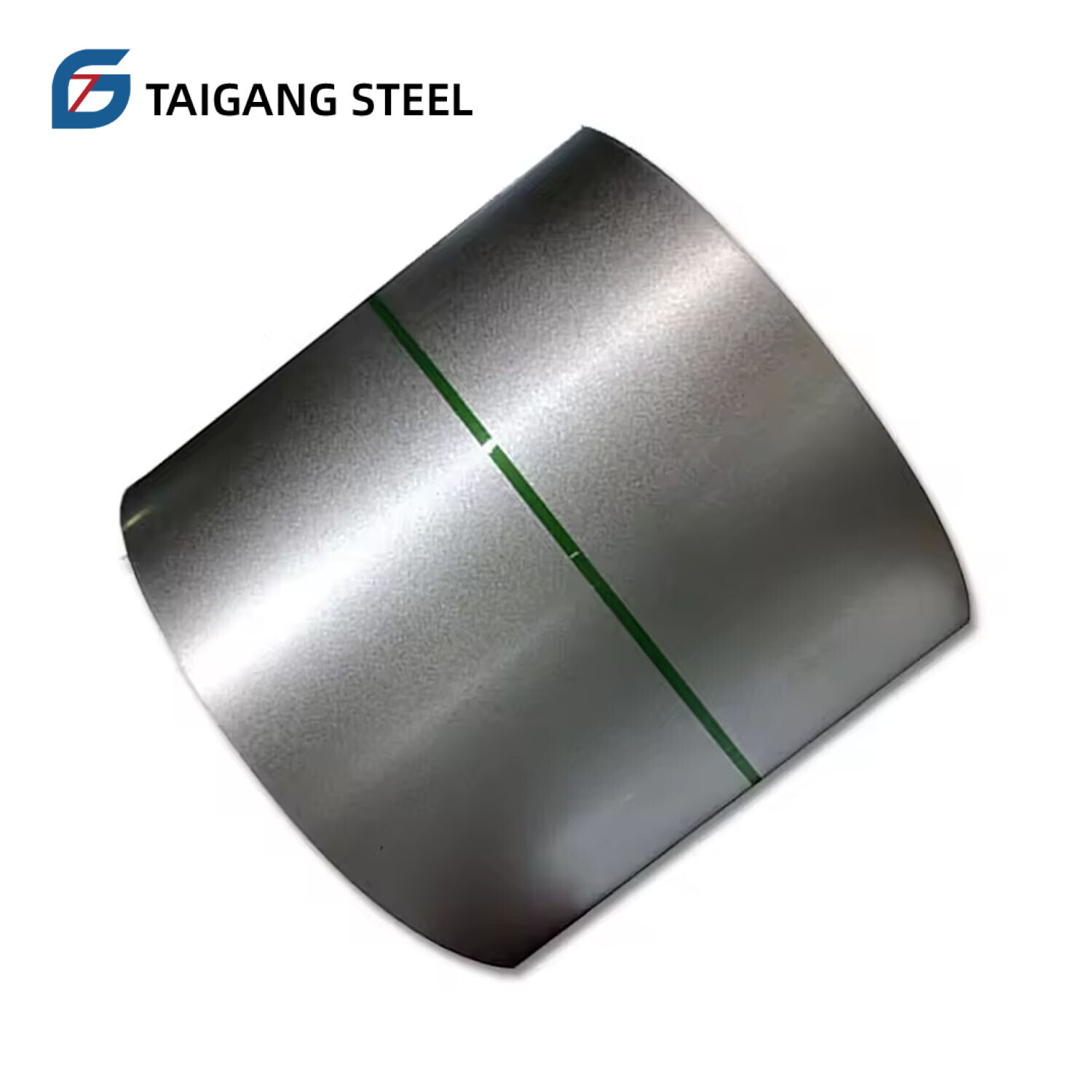

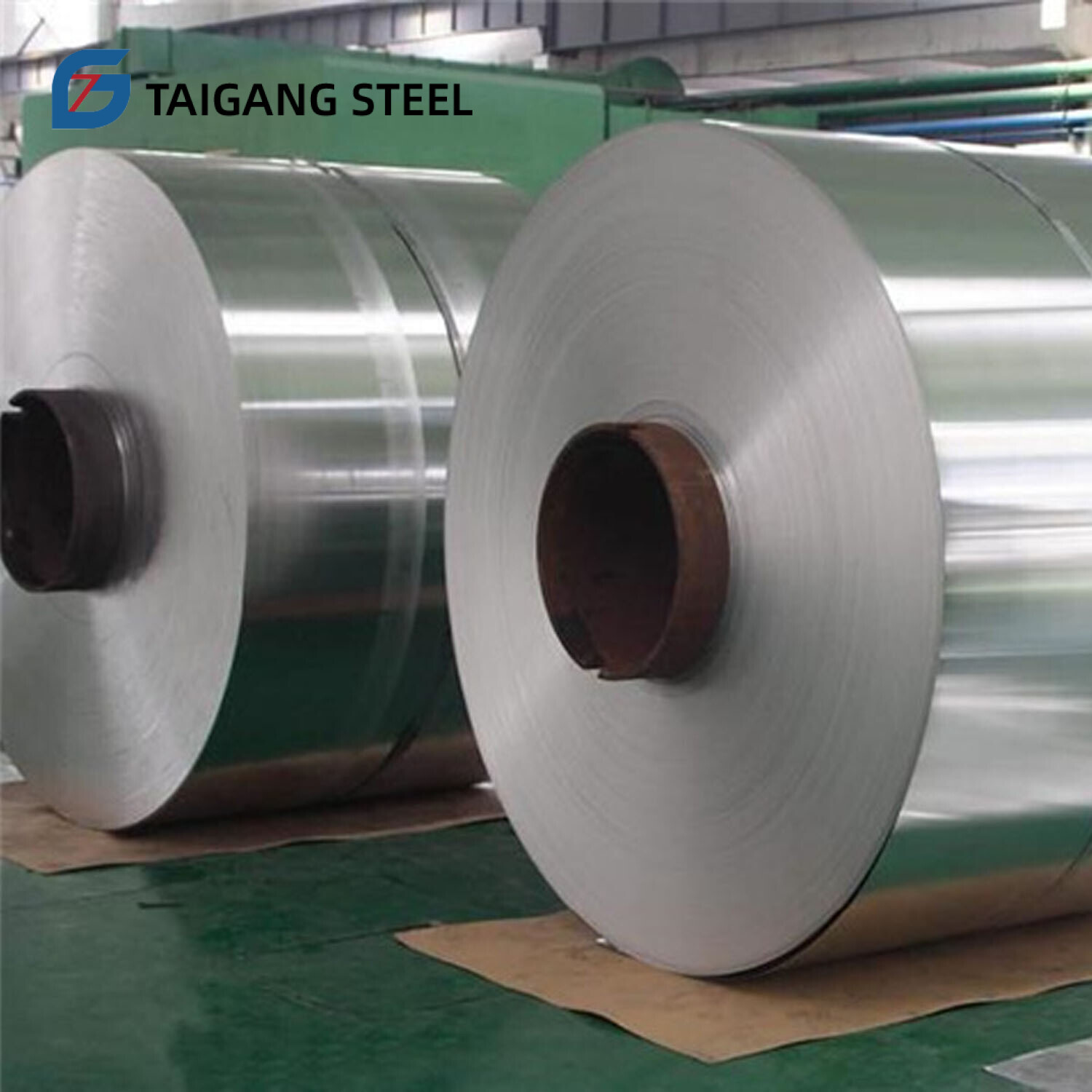

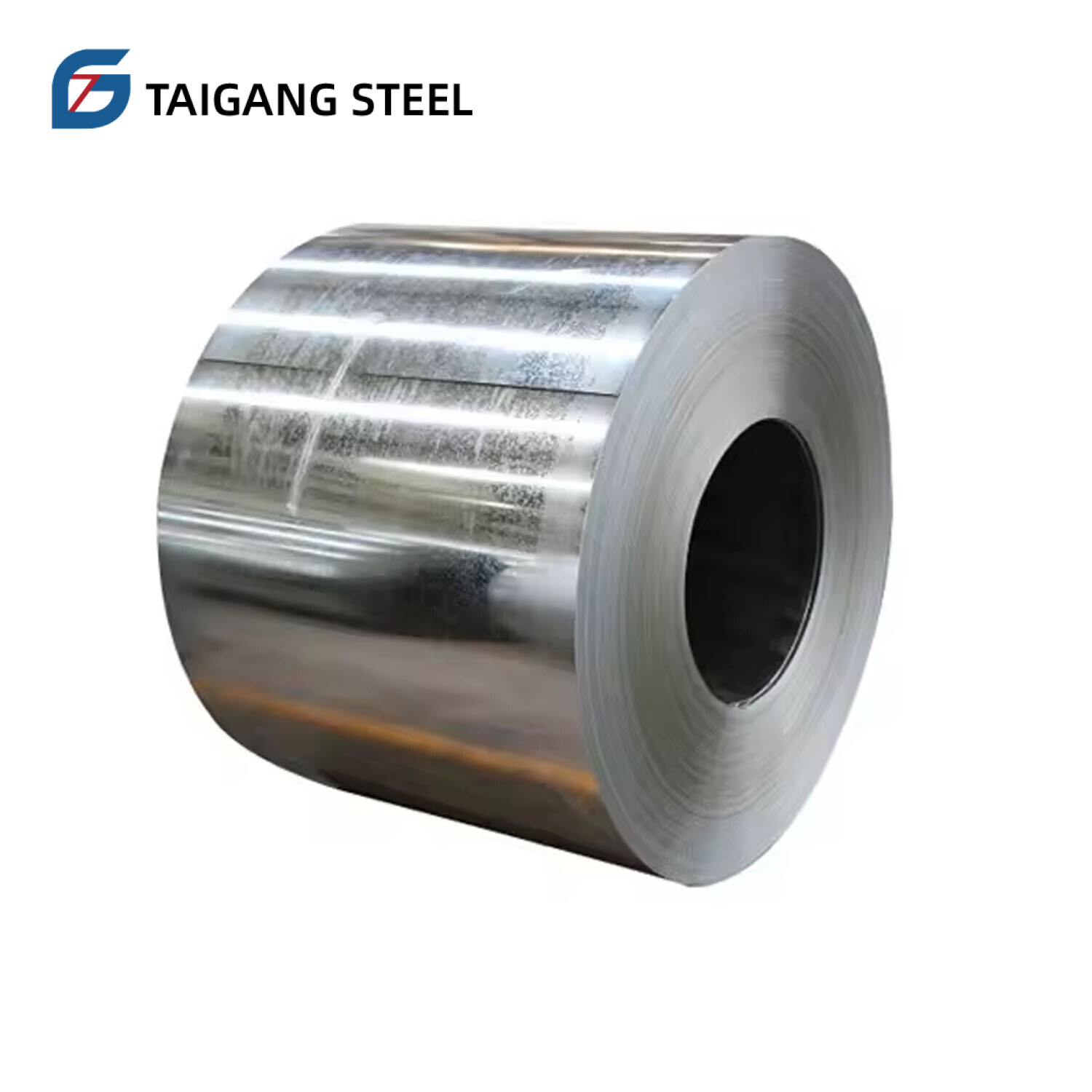

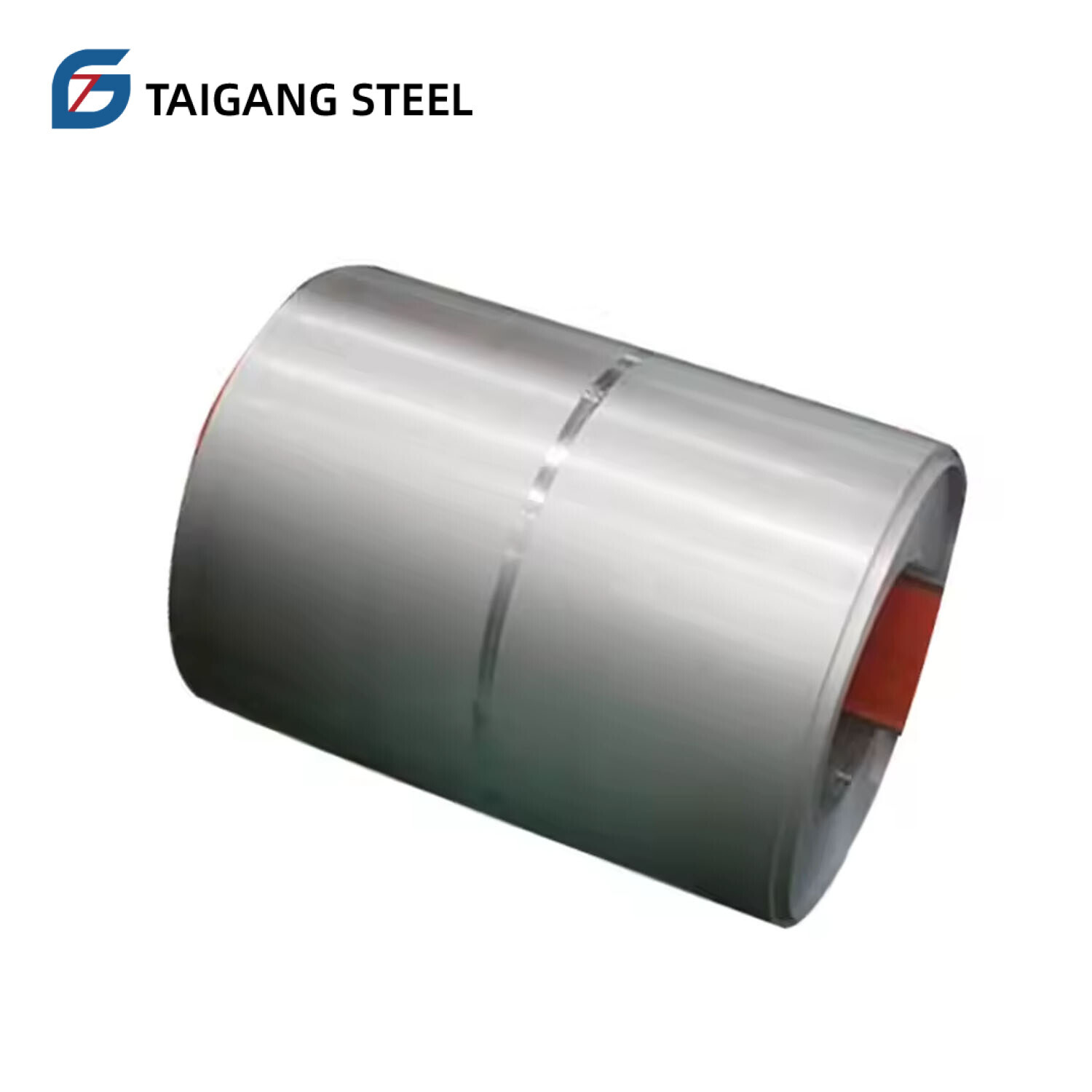

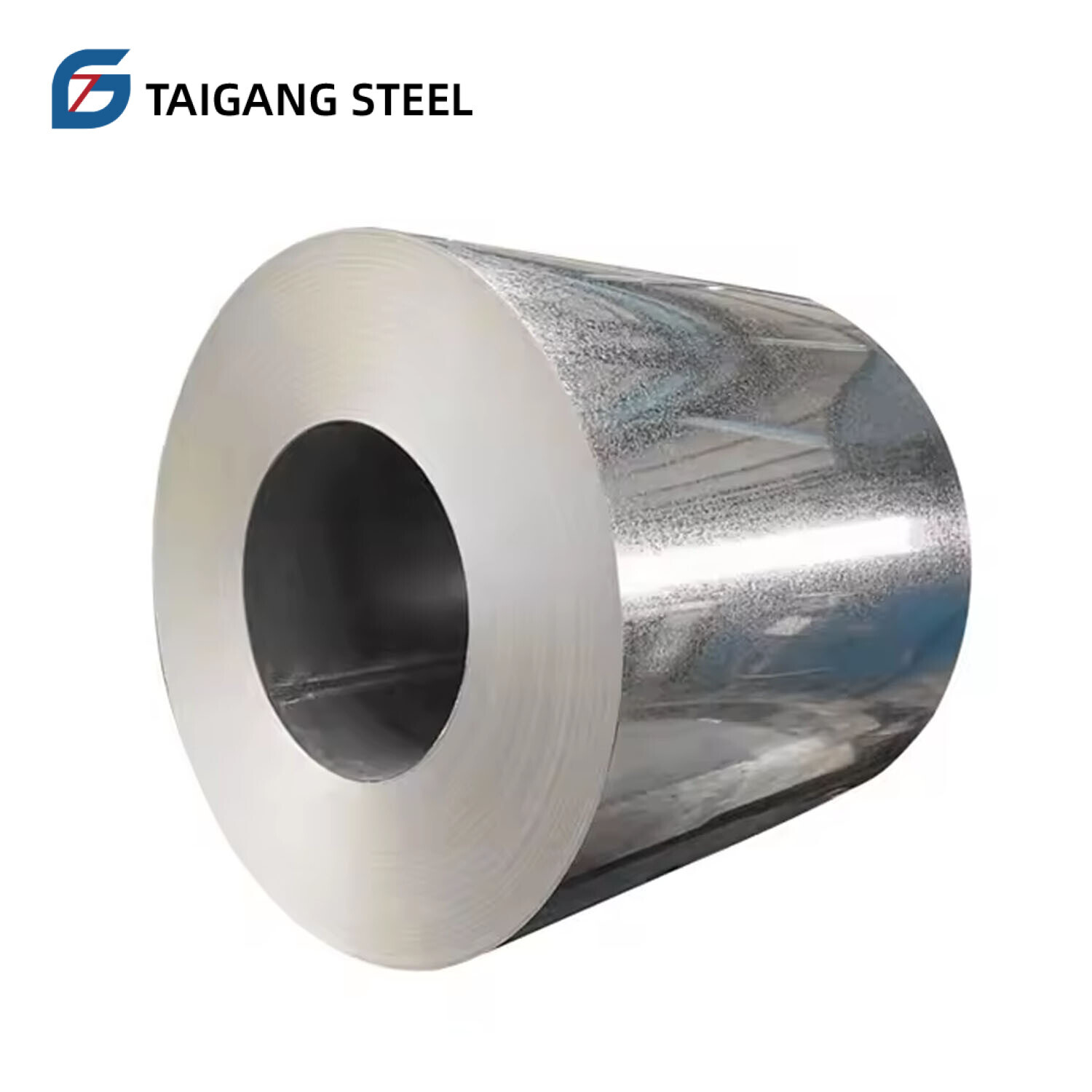

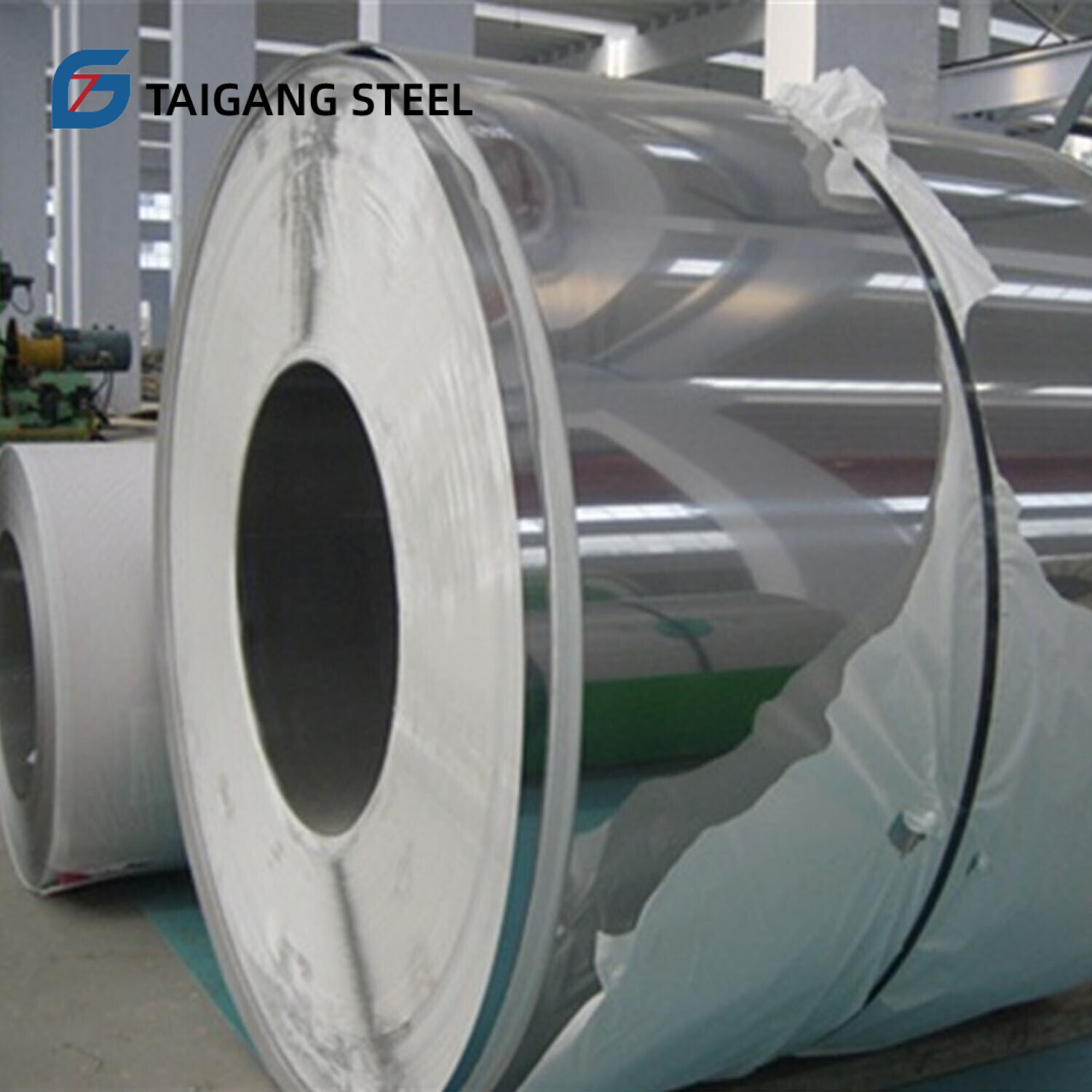

Galvalume Steel Coil
Galvalume steel coil is a type of steel that is coated with zinc for protection by an electroplating process. The galvanized layer is applied to cold rolled steel at low temperatures. So it is also known as cold galvanized steel.
Quick Quote
Contact Us


Product Description
Factory
Packing & Transportation
Product Parameters
Product NameGalvalume Steel Coil
Thickness0.12mm-6.00mm
Width600mm-1500mm
Length1m-12m, Support Customization
StandardAISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Thickness of Aluminum Zinc Coating30-185g/m²
Content of Al-Zn Coating Al: 55%, Zn: 43.5%, Si: 1.5%



Chemical Composition

AlZnSiFeCuCdPbSnNiClose Cr
55-5841-431.5-20.250.030.050.010.050.050.05



Mechanical Properties

GradeYield Strength MPa≥Tensile Strength MPa≥Elongation A%≥
DX51D Z/ZM/AZ/AM240-380270-50022
DX52D Z/ZM/AZ/AM140-300270-42026
DX53D Z/ZM/AZ/AM140-260270-38030
DX54D Z/ZM/AZ/AM120-220260-35036
S220GD Z/ZM/AM22030020
S250GD Z/ZM/AZ/AM25033019
S280GD Z/ZM/AM28036018
S300GD A/AM30038018
S320GD Z/ZM/AM32039017
S350GD Z/ZM/AZ/AM35042016
S450GD A/AM45048015
S550GD Z/ZM/AZ/AM550550-



Galvanized Surface Selection

Zero SpangleMinimized SpangleNormal SpangleLarge Spangle



Type of CoatingRecommended Coating Weight
Aluminum-zinc Alloy30/40/50/60/75/90/100/150
A: Coating quality50g/㎡,approximately equal to the coating thickness13.3pm



ProjectClassificationSymbol
Type of CoatingAluminum-zinc AlloyAZ
Surface FinishConventional SequinsR
Minimize SequinsM
Skin ThroughS
Surface TreatmentChromate Passivationc
Non-chromate PassivationC5
Chromate PassivationoilingCO
Chromium-free PassivationoilingCO5
Anti-fingerprintN
Chromate-free/Anti-fingerprintN5
No chromate high weather resistance fingerprintNW
Oil filling0
No treatmentU



Material Comparison

Chinese StandardEuropean StandardsAmerican StandardJapanese Standard
DC51D+AZDX51D+AZCS Type B, Type CSGLCC
DC52D+AZDX52D+AZDSSGLCD
S250GD+AZS250GD+AZ255-
S300GD+AZ---
S350GD+AZS350GD+AZ345Class1 SGLC490
S550GD+AZS550GD+AZ550SGLC570
